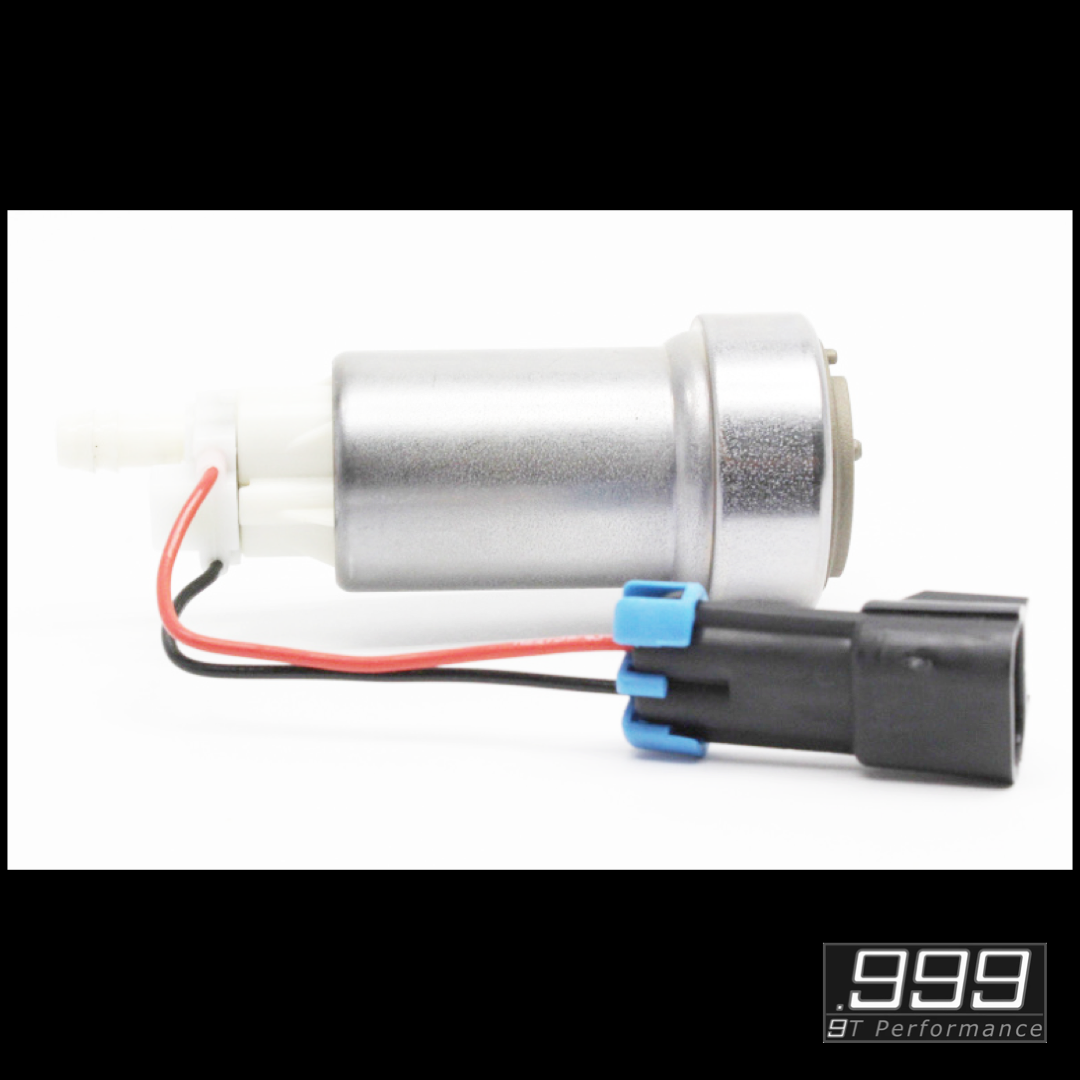

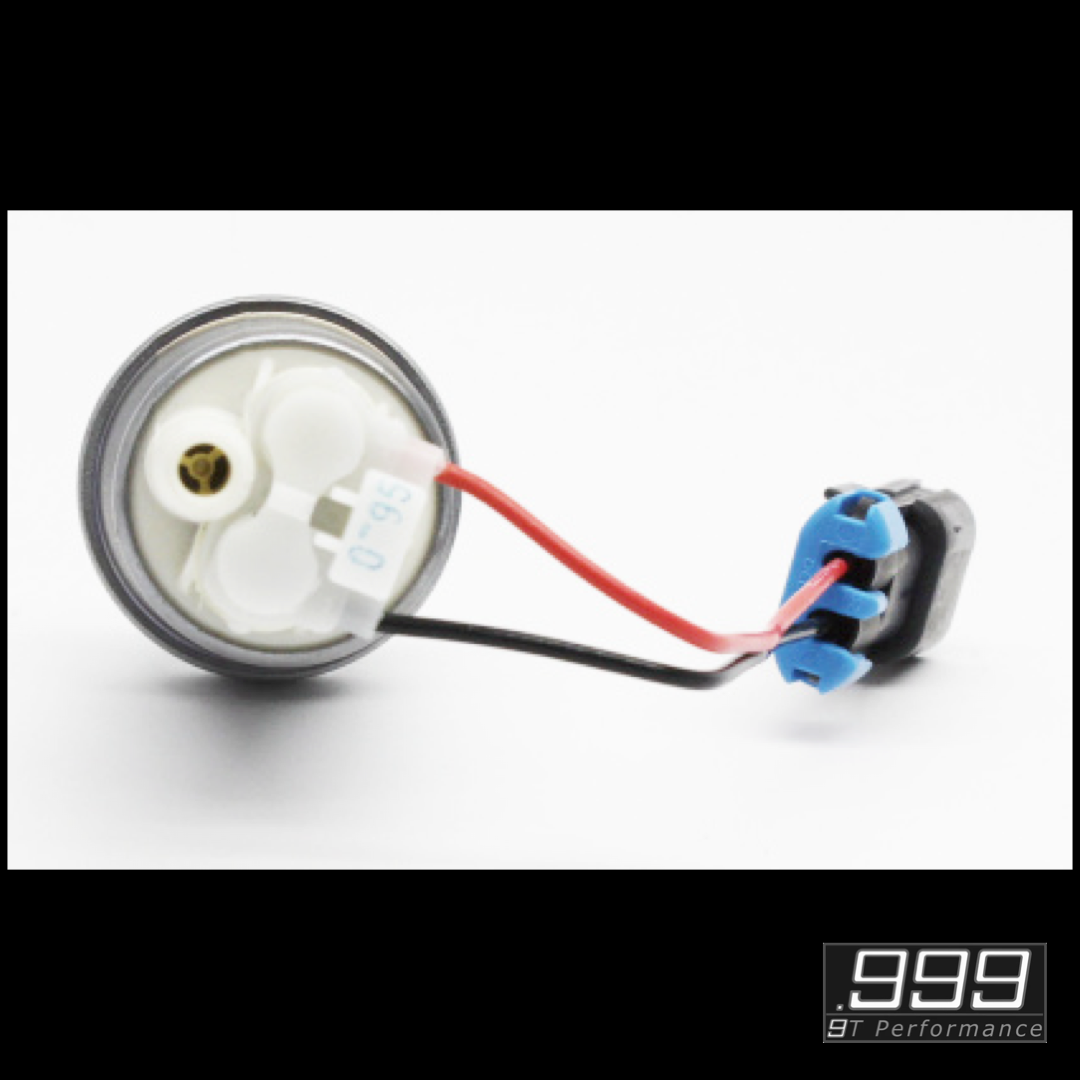

Walbro Hellcat 525lph Fuel Pump

Walbro Hellcat 525lph Fuel Pump

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out
Options

Walbro HELLCAT 525LPH FUEL PUMP - TI Automotive 39/50 Fuel Pump

Enjoy the highest output on today’s market with our new in tank Hellcat DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance

The Walbro Hellcat 525lph pump’s innovative design features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp.

• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 compatible
• Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications

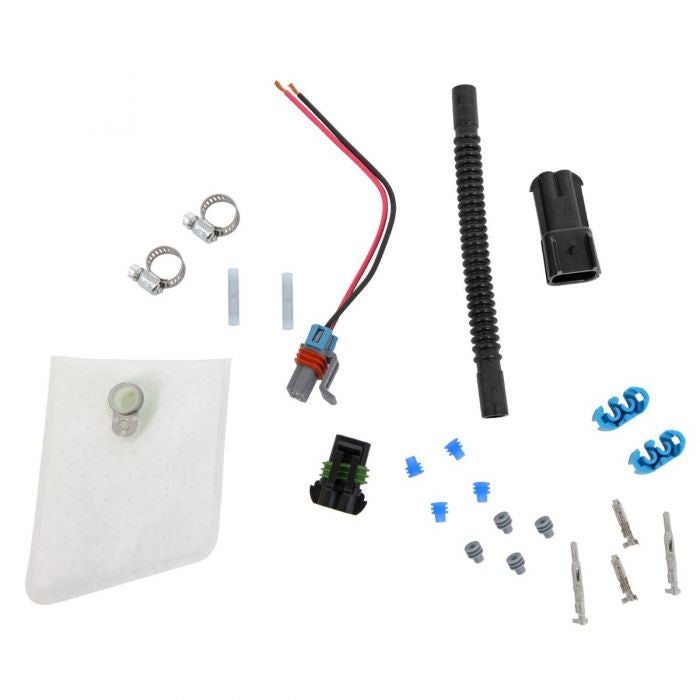

• Flush mountable to existing hanger with installation kit 400-1168

Dimensions:

Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD

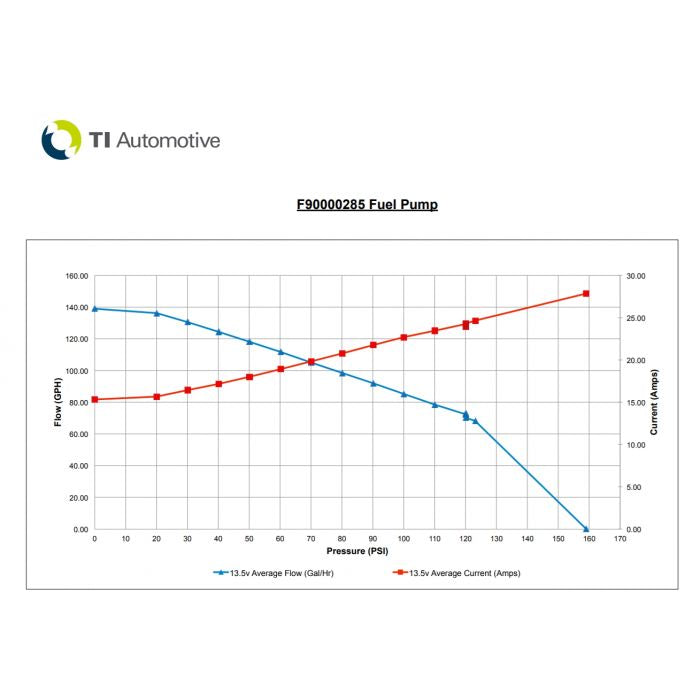

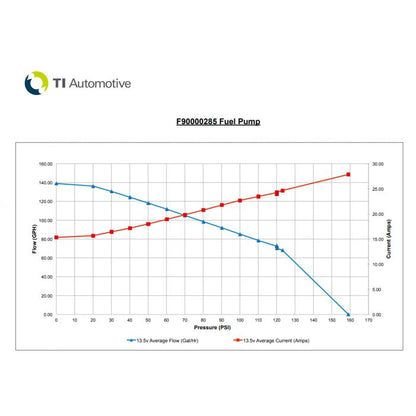

Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts



Please Note: 400-0085 Install kit has been discontinued and replaced by 400-1168
