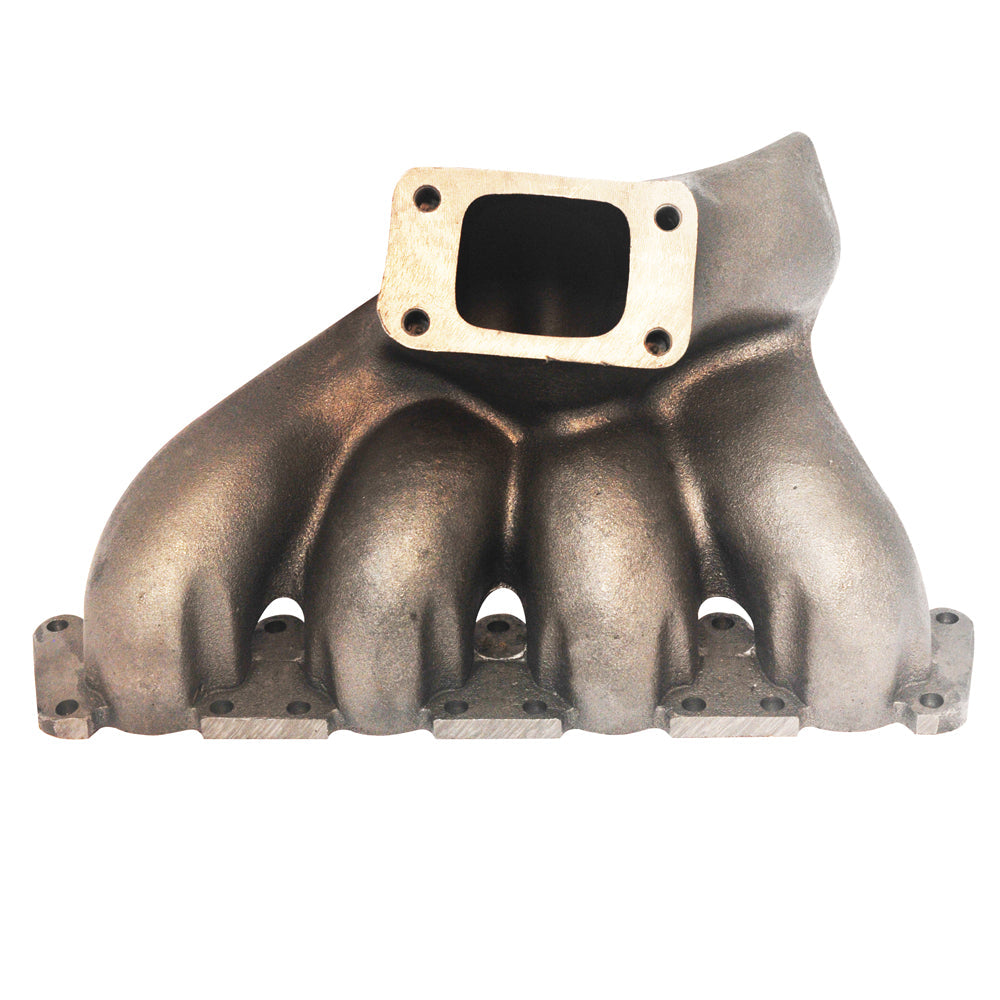

VW / AUDI B5 1.8L 20v T3 top mount turbo manifold

• The TMA04 manifold is a GGG40 cast manifold, with a T3 turbocharger flange. Manifold accepts 2 bolt 38mm wastegates.
• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
• 8 spacer washers are included for easier assembly of the top nuts.
• The application is VW / Audi 1.8 20V Longitudinal engines. (Passat, A4)
• Internal diameter ducts: 43mm.
• We also offer a T25 side mount manifold for the same application, please check TMA01.
• Check our the twin scholl version with 40mm internal diameter ducts, ensuring greater gas velocity and better response at low and medium RPM. Search for TMA14V on our website.

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
