Turbosmart GenV ProGate50 External Wastegate

$529.95 USD

Sale Sold out

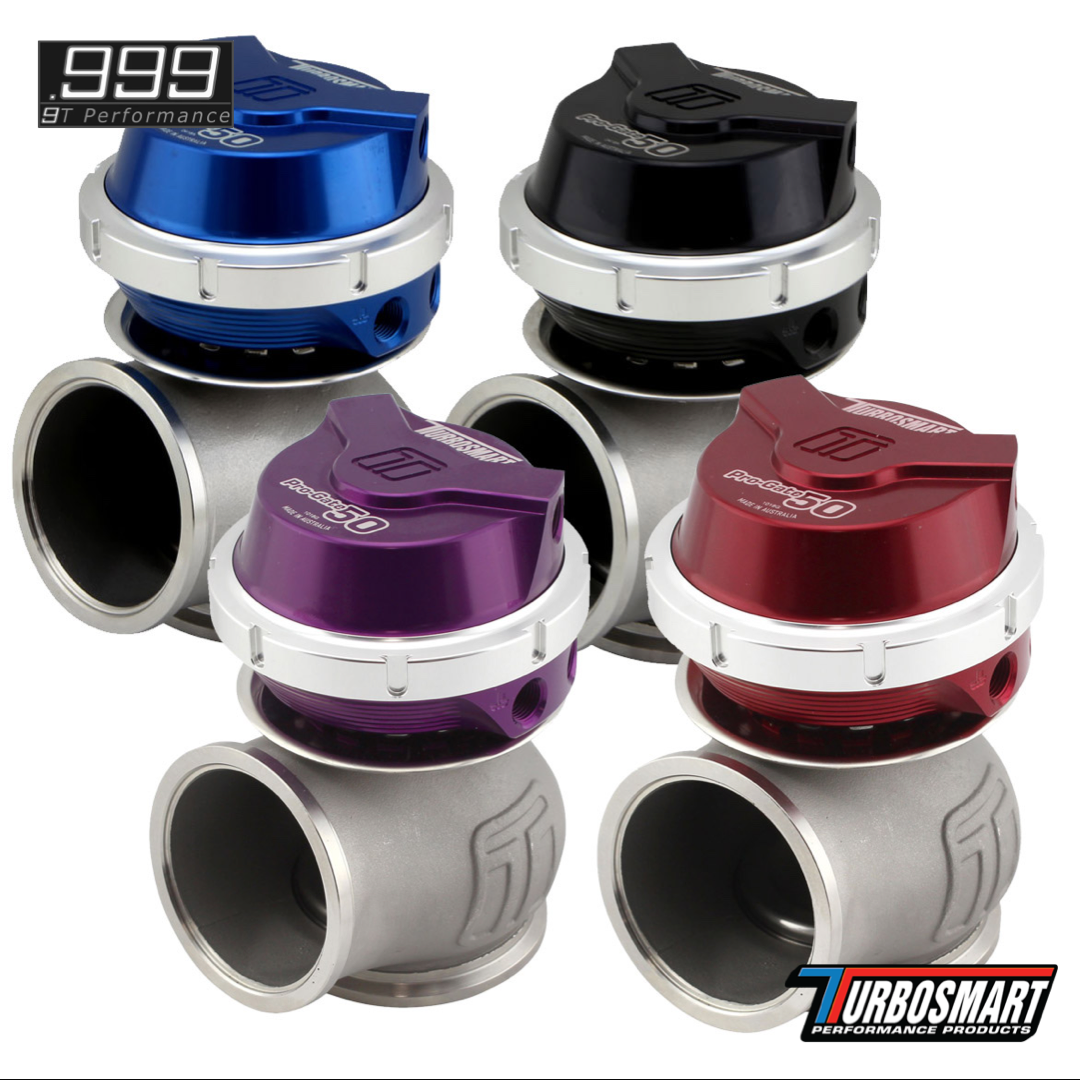

Color Black Blue Red Purple Sleeper

Spring Pressure 14 psi

Quantity

Turbosmart GenV ProGate50 External Wastegate

The GenV WG50 ProGate50 External Wastegate is a Motorsport-proven, cost-effective 50mm external wastegate – The Highest Flowing 50mm External Wastegate in the World! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

THE PRO-GATE 50 FEATURES:

50mm valve size
V-band clamps to suit 2” OD dump tube
Solid, one-piece coated valve
Advanced silicone Nomex diaphragm
Locking collar for compact size and easy spring changes
Available in Motorsport and Compressed Gas versions
17-7 PH Stainless Steel Springs (3, 5, 7, & 14psi)

APPLICATION:

Suitable for high performance turbocharged engines with an external wastegate turbo system. Suits 2.00” outside diameter pipe. Fits older-style Pro-Gate48 and Power-Gate50 flanges.
