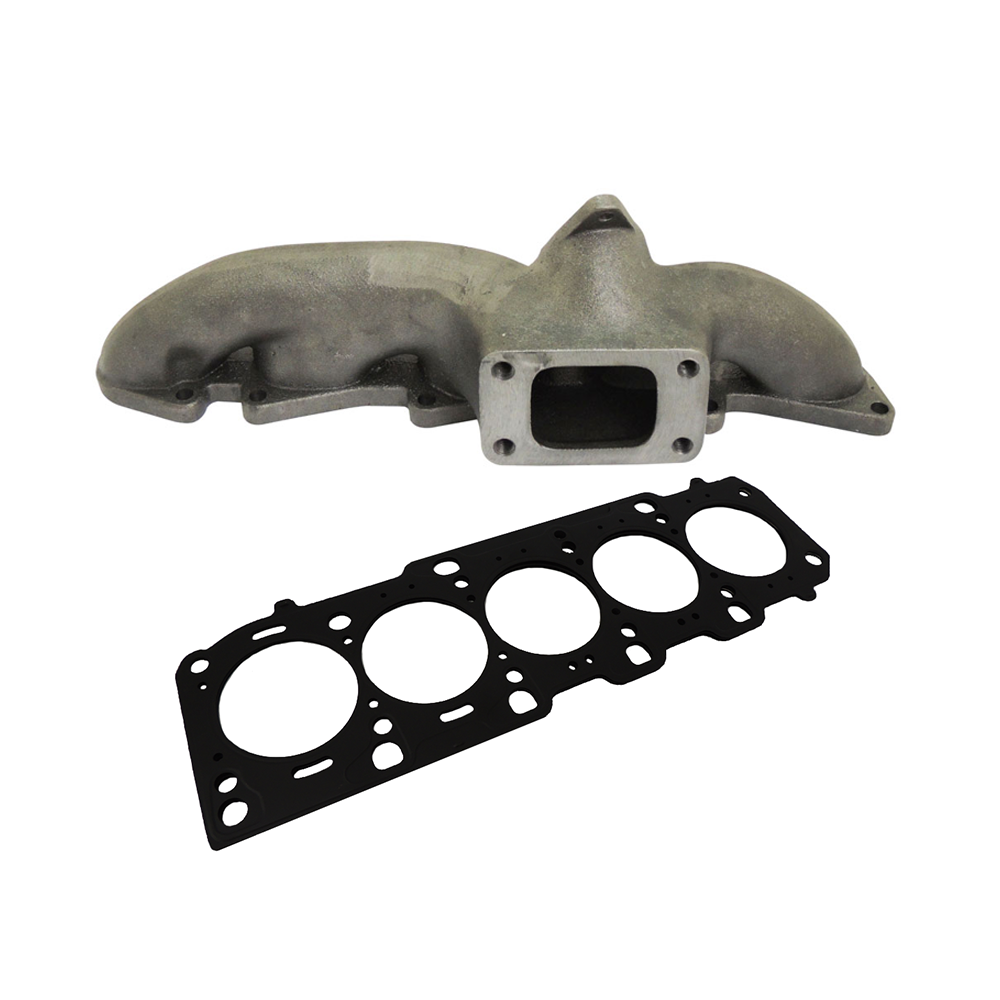

T3 Turbo manifold + head gasket for Fiat/Lancia inline 5cyl 20V

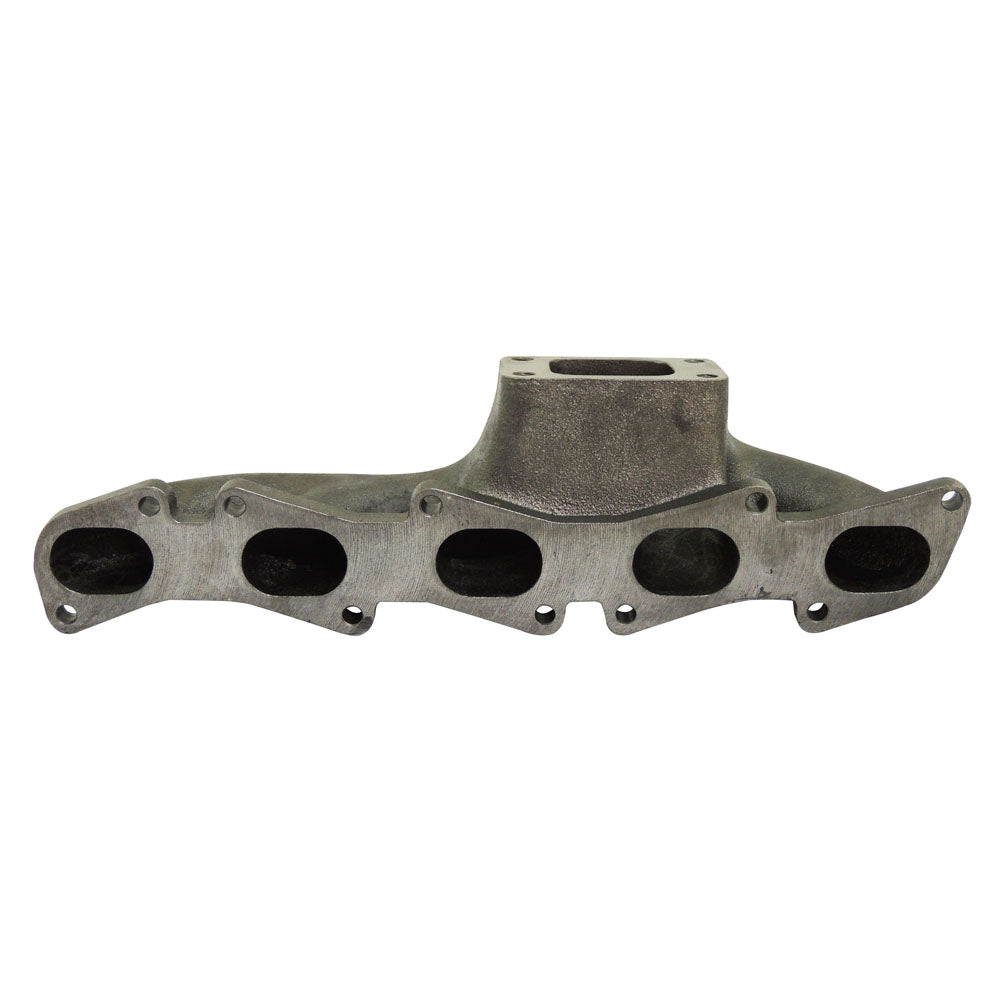

T3 Turbo manifold

‚

• Inline 20V engines #TMF06T3
• SPA Turbo USA manifolds are custom-designed.
• Utilizing state-of-the-art fluid dynamics software.
• The strength and reliability of STMA Standard nodular cast iron.
• While providing the flow characteristics of a tube manifold.‚
• Cast in our own foundry from the strongest, most durable alloys, these manifolds offer thoroughly tested, race-proven performance.

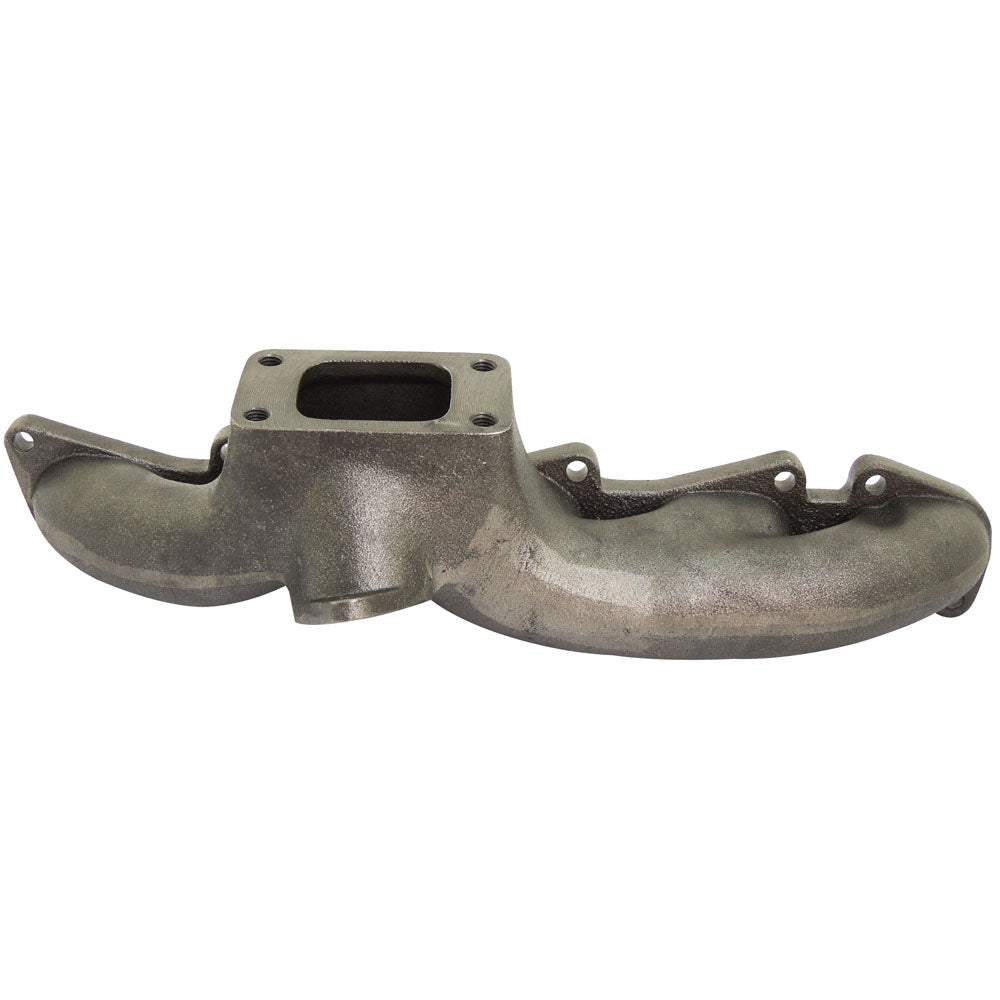

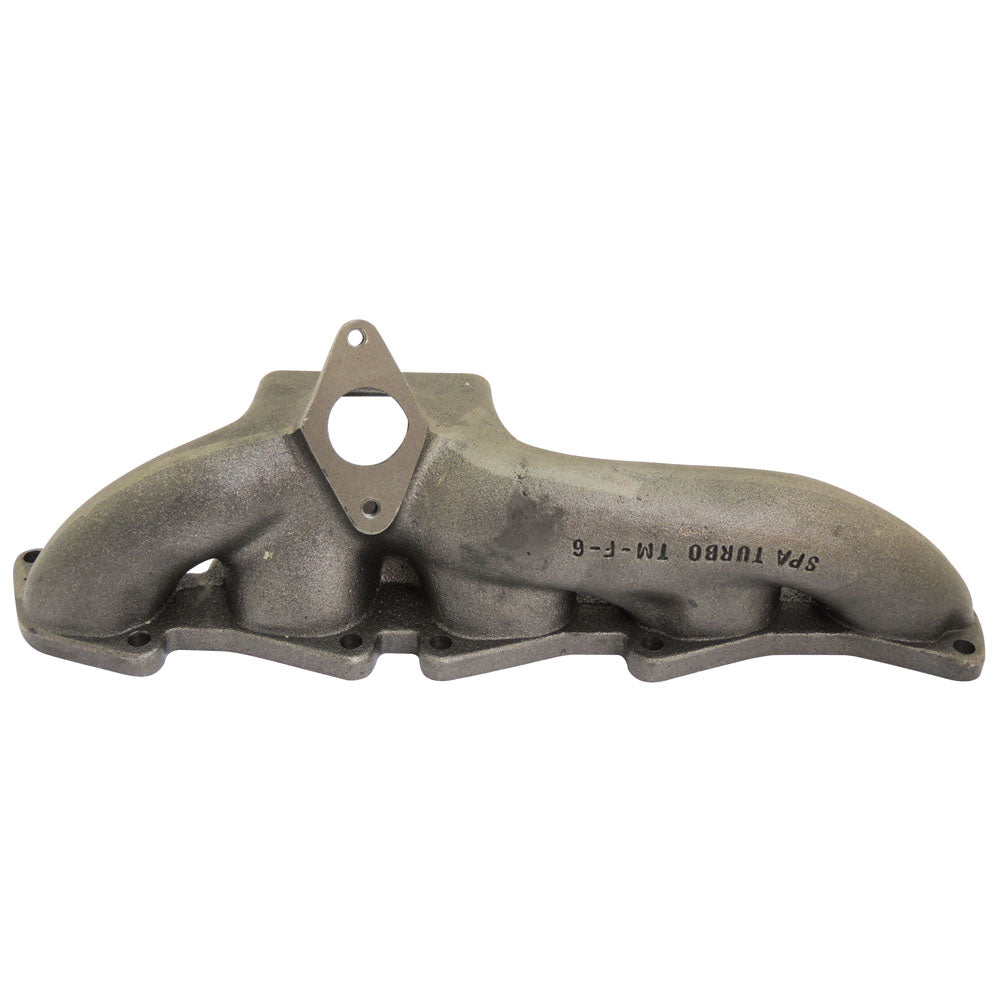

• The TMF06 manifold is ‚ T3 turbocharger Flange. Manifold accepts 2 bolt 38mm wastegates.
• The application is Lancia / Fiat inline 5 cyl 20V engines. Fiat‚ 175 / Bravo HGT Turbo / Coupe.
• This manifold was developed to upgrade the OEM turbocharger to a T3 flanged one, exhaust and intake pipes work is necessary.
• SPA Turbo offer manifolds for 128 SOHC, 8V and 16V engines also.
• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25

‚

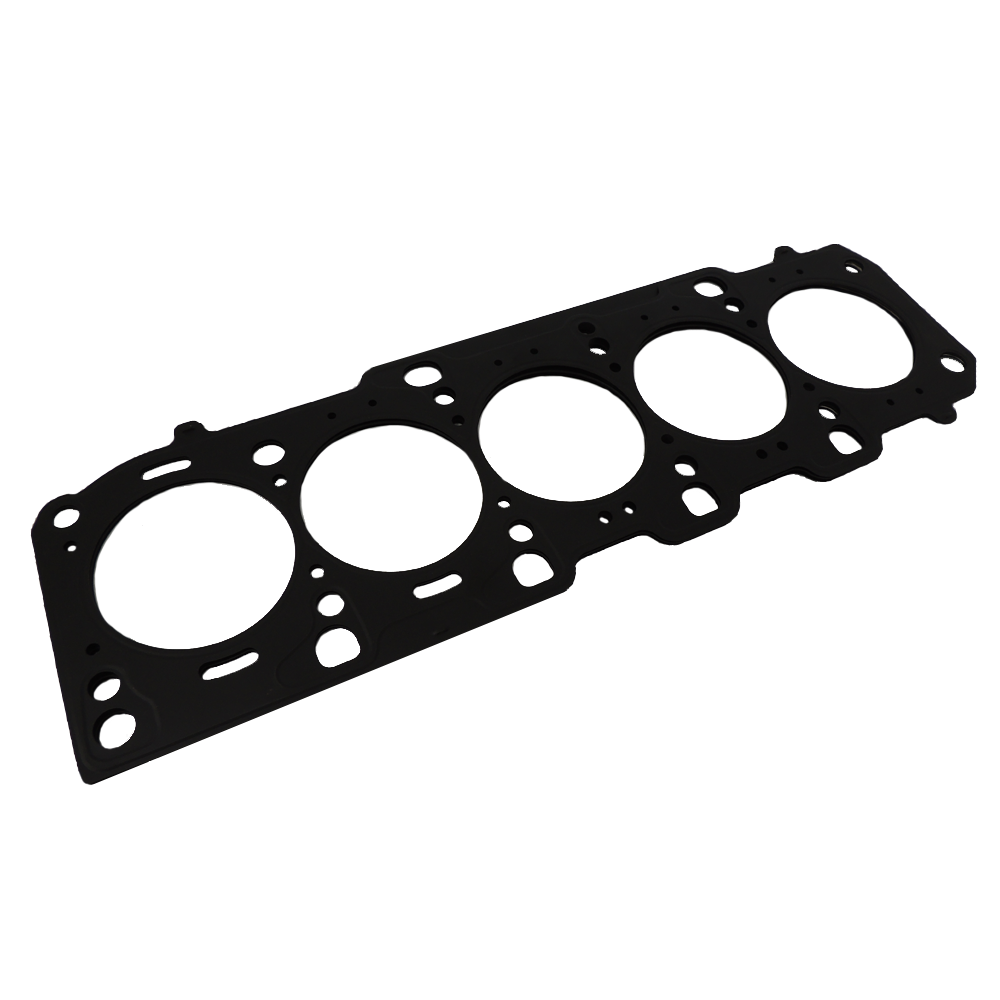

Head gasket

‚

• With this special‚ Turbo multilayer metal cylinder head gasket.
• Will accept pistons up to 83.50mm overbored sized, can be used with smaller bores with no problem too.

• Total thickness: 1.50mm (0.059")
• The new compression ratio: (depending on the engine variant, see the overview below).

‚
