Radium Engineering Fuel Rail - 2.8L 12V VR6

Radium Engineering Fuel Rail - 2.8L 12V VR6

FEATURES:
-Lightweight aluminum construction
-Inner bore diameter: 0.7 inch
-Anodized surface finish for wear and corrosion resistance
-No special tools required for installation
-Thermal insulating spacers

FUEL RAIL
Manufactured with a 0.7" large internal bore,

the Radium Engineering fuel rail can support all necessary engine power requirements.

Provided are 2 different fuel rail mounts depending on the lower intake manifold.

Shown below is the early model engine which uses an aluminum lower intake manifold. It requires the long fuel rail mounts included in the kit.

Shown below is the late model engine which uses a polymer lower intake manifold. It requires the short fuel rail mounts included in the kit.

NOTE: with late model lower intake mannifods, a Radium Engineering fuel pulse damper can be used in the center port.

As shown below, this fuel rail is compatible with the OEM late model upper intake manifold when using OEM equivalent fuel injectors.

For clearance purposes, this large bore fuel rail is NOT compatible with the early model upper intake manifold.

INJECTORS
Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors (or any equivalent aftermarket injector) can be used.

As shown, the factory injector retaining clips can be reused.

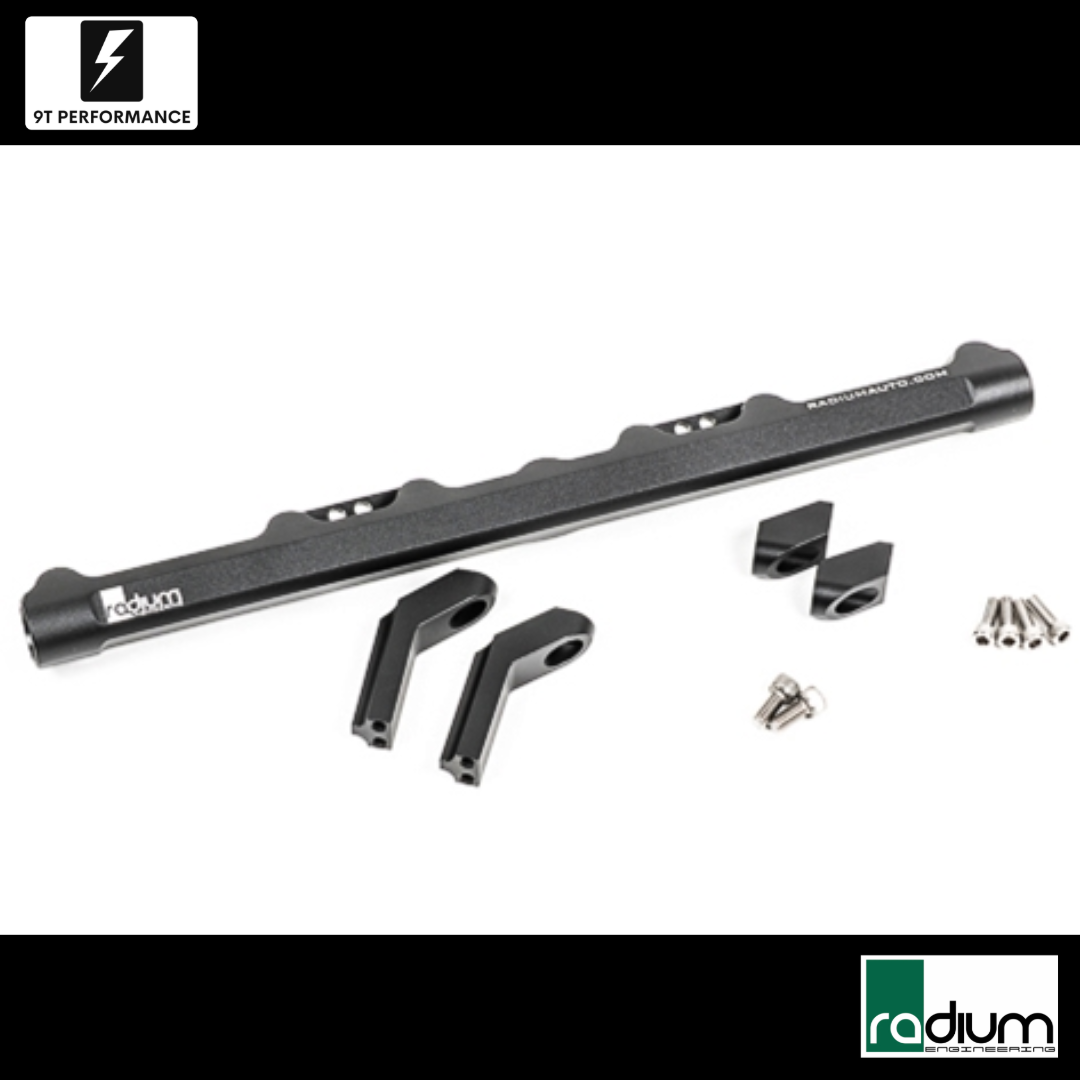

INCLUDES
1x 2.8L 12V VR6 Fuel Rail
2x Early Model Fuel Rail Mount
2x Late Model Fuel Rail Mount
4x Stainless Screws, M5x0.8mm
2x Stainless Screws, M6x1mm
