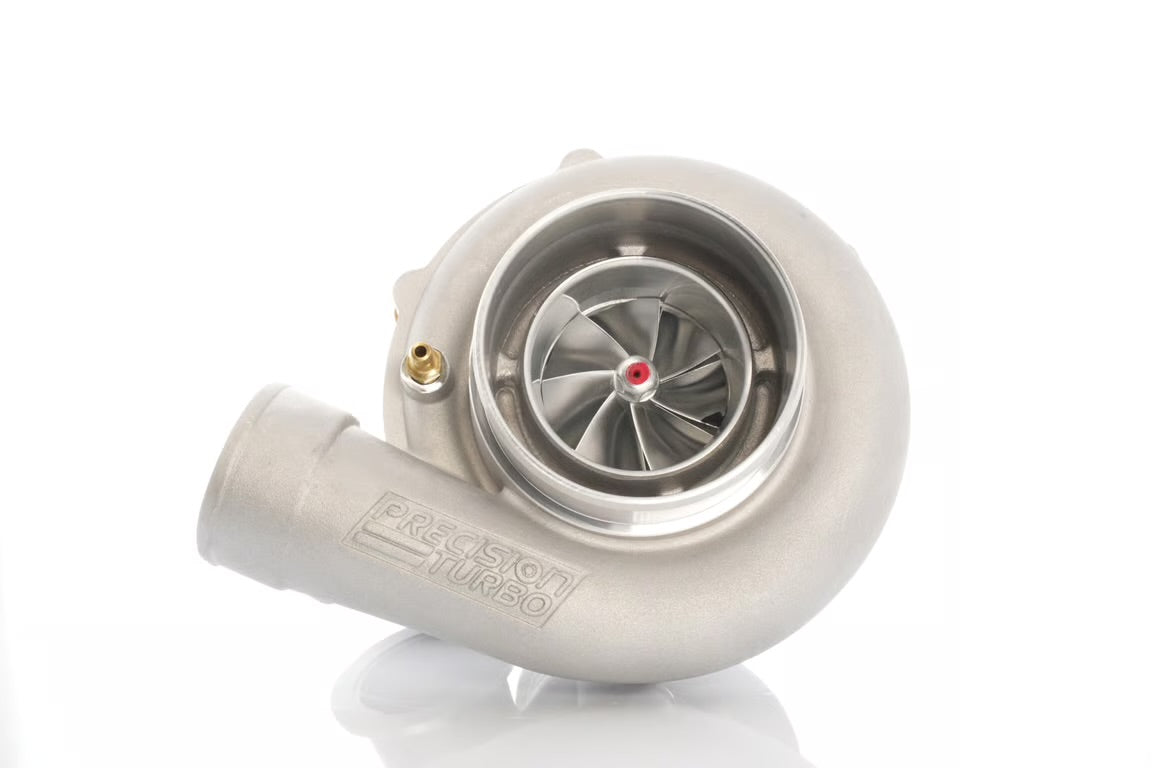

Precision Next Gen PT6062

Precision Next Gen PT6062

The 60mm GEN 2 turbocharger has provided exceptional performance throughout previous years and has stood the test of time. With the success of our industry leading the Next GEN lineup of turbochargers, it was time to apply the Next GEN technology to our 60mm turbochargers. Our new Next GEN 60mm turbocharger is set to outpace and outperform featuring a state-of-the-art 60mm Next GEN CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Available exclusively in standard rotation and outfitted with our 62mm turbine wheel, the all-new Next GEN 60 is proven to provide a substantial improvement over the GEN 2 lineup.

Exclusive NEXT GEN 60mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging

Compressor cover enhancements provide 10% more flow over the previous GEN 2 cover

Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

High flow/ highly efficient 62mm CEA turbine wheel

FEATURES:

• New Compressor wheel inducer: 60.35 mm
• New Compressor wheel exducer: 86.00 mm
• New Compressor wheel extended tip: 88.12 mm
• Max Shaft Speed: 159,900 rpm

FITTINGS, FLANGES & CLAMPS:
PFT047-3039: Recommended Oil Feed Fitting
PTP074-2108:Recommended Oil Drain Flange
PTP074-1008/1011/1030:Turbine Housing Inlet Flange
PTP071-1027:Turbine Housing Inlet Clamp
PTP074-3005/3007/3008/3012/3014/3036/3050 Turbine Housing Outlet Flange
PTP071-1026/1029 Turbine Housing Outlet Clamp
*Clamps & Flanges sold separately.

SPECIFICATIONS:

• HP RATING: 840 HP
• GENERATION: T3 SS V-BAND
• COVER STYLE: SCP-COVER
• COMPRESSOR INDUCER: 60.0 MM
