Nuke Performance - Bosch injector 980cc, 38mm (EV14K)

Nuke Performance - Bosch injector 980cc, 38mm (EV14K)

$85.50 USD
$85.50 USD
Sale Sold out

Bosch 980cc injector, high impedance - EV14K Compact 39mm injector selected to fit the Nuke Performance range of fuel rails.

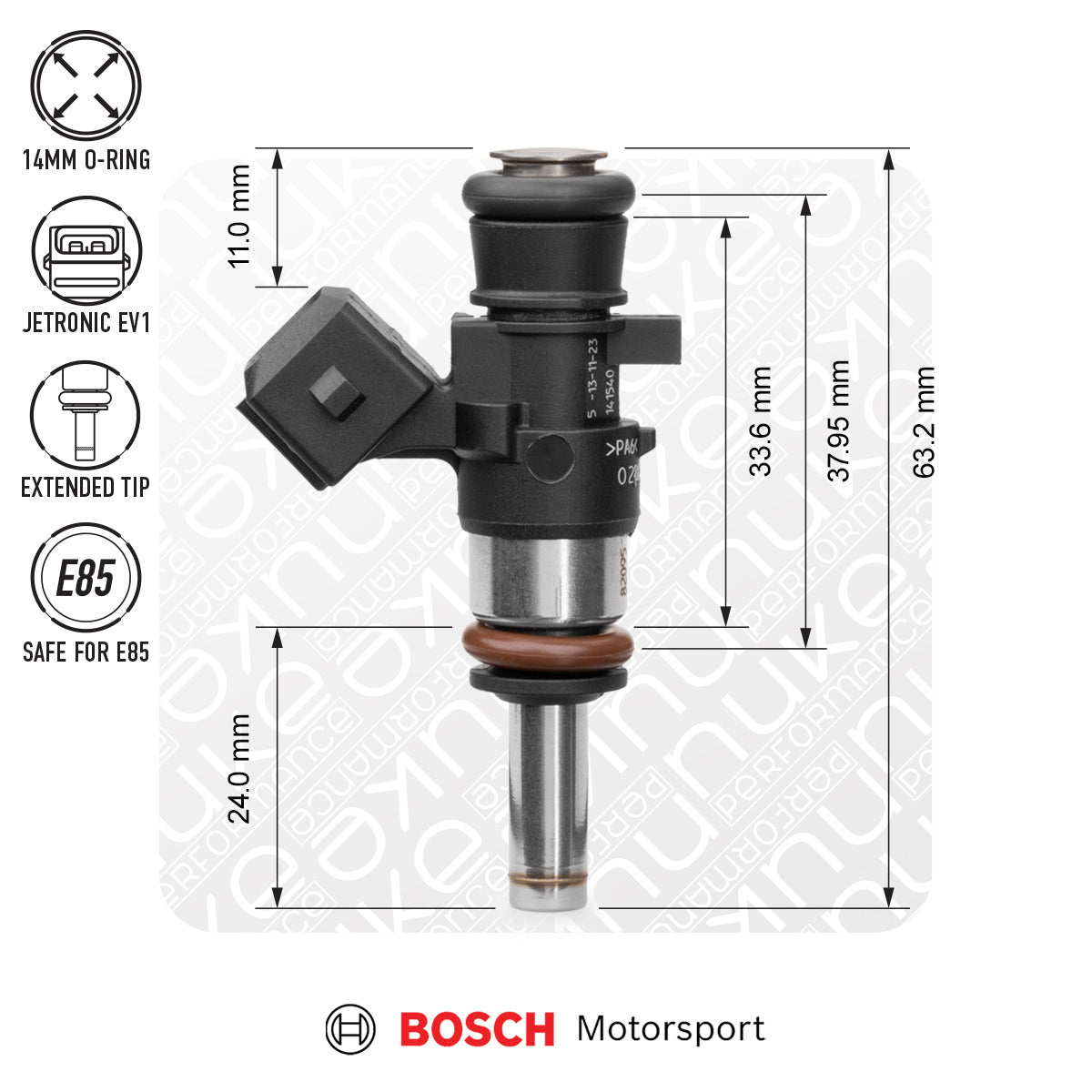

This injector is a Bosch EV14K Compact injector (33.60mm between O-rings / 37.95mm center to center of the O-rings).

• High impedance 980cc injector from Bosch Motorsport
• Extended tip, Bosch EV14 K injector length
• Delivered without additional adapters

When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.

• Bosch Motorsport 980cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.

Bosch part number 0280158040 / Bosch -040
OEM part number 0 280 158 040
Type - w/o included adapters 39mm EV14K (Compact)
Type - with included adapters No included adapters
Connector Bosch JPT EV1 Minitimer Jetronic
O-ring top / bottom 14mm Viton / 14mm Viton
Resistance 12 ohm
Volume at 3 BAR 980cc/min = 670g/min = 89lb/hr @ 3bar
Fuel compatibility Petrol / Gasoline / E85 / M100 *
Nozzle / Spray pattern Extended tip / Single cone spray
For motorsports use YES
Part # / EAN 131-01-098 / 7340209508765

* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.

• Bosch 980cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.

• Learn more : Visit our FAQ / Injector calculator

Measured peak static flow in a test environment
2 BAR (29 PSI) 720cc / min = 69 lb / h
3 BAR (43.5 PSI) 900cc / min = 86 lb / h
4 BAR (58 PSI) 1038cc / min = 99 lb / h
5 BAR (78.5 PSI) 1170cc / min = 111 lb / h
6 BAR (88 PSI) 1284cc / min = 122 Ib / h
7 BAR (101.5 PSI) 1344cc / min = 128 lb / h
Petrol (10% margin) Turbo charged Naturally aspirated
1 cyl 1x129 = 129hp 1x168 = 168hp
4 cyl 4x129 = 516hp 4x168 = 672hp
5 cyl 5x129 = 645hp 5x168 = 840hp
6 cyl 6x129 = 774hp 6x168 = 1008hp
8 cyl 8x129 = 1032hp 8x168 = 1344hp
E85 (10% margin) Turbo charged Naturally aspirated
1 cyl 1x112 = 112hp 1x140 = 140hp
4 cyl 4x112 = 448hp 4x140 = 560hp
5 cyl 5x112 = 560hp 5x140 = 700hp
6 cyl 6x112 = 672hp 6x140 = 840hp
8 cyl 8x112 = 896hp 8x140 = 1120hp


Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).

• Bosch injector 980cc, 65mm (EV14L) includes:
1 x Bosch Motorsport injector (# 0280158040)

• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical.
Bosch injector 980cc, 38mm (EV14K), 4pcs flow matched Part # : 131-04-098
Bosch injector 980cc, 38mm (EV14K), 5pcs flow matched Part # : 131-05-098
Bosch injector 980cc, 38mm (EV14K), 6pcs flow matched Part # : 131-06-098
Bosch injector 980cc, 38mm (EV14K), 8pcs flow matched Part # : 131-08-098
