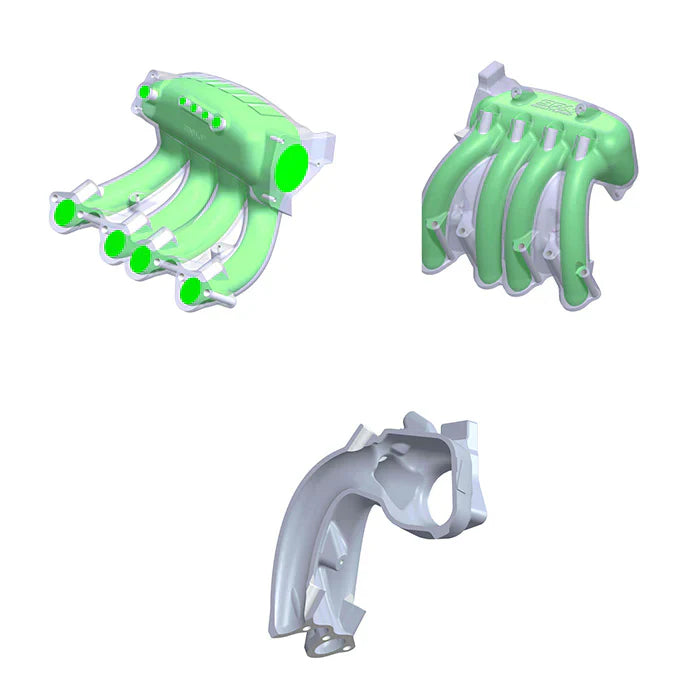

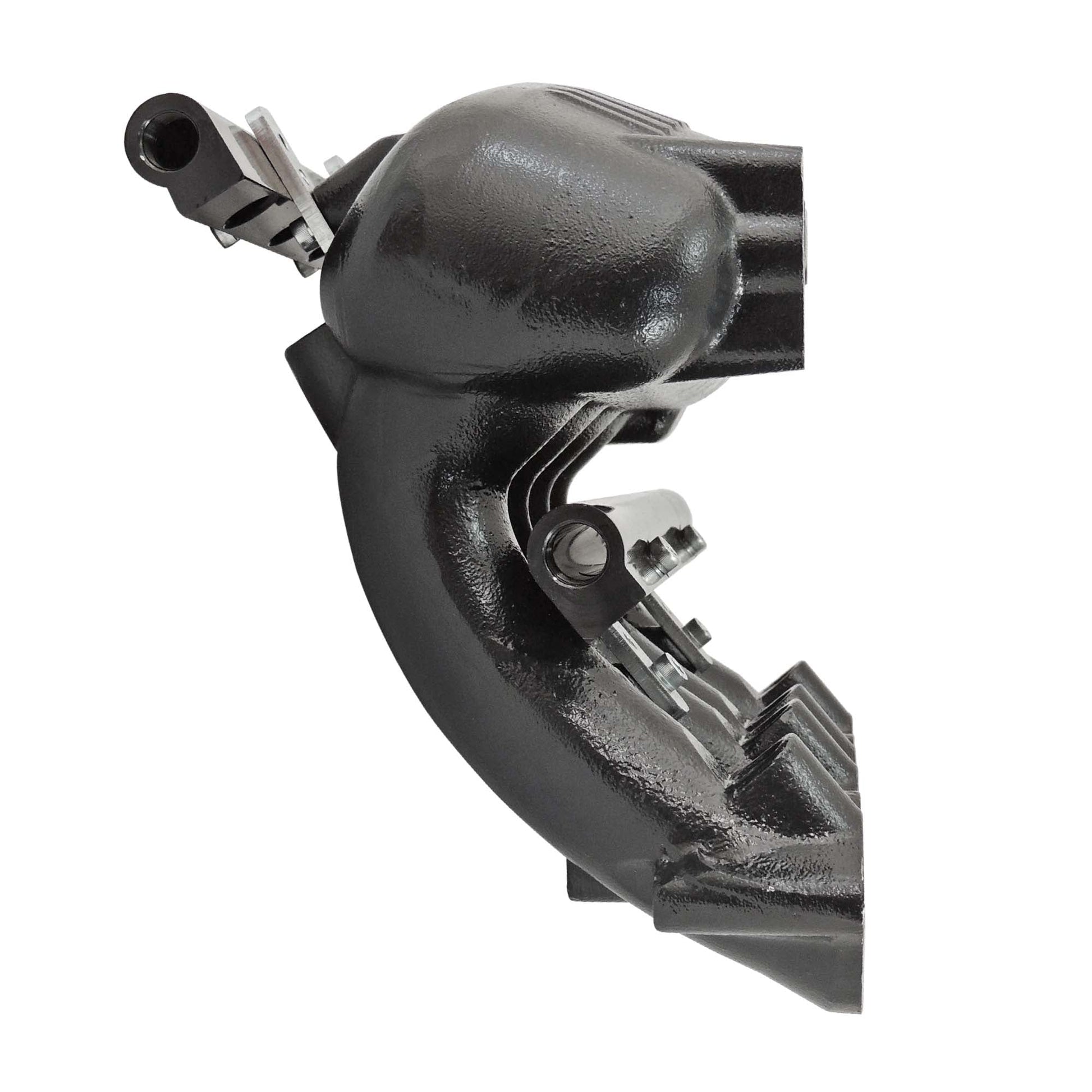

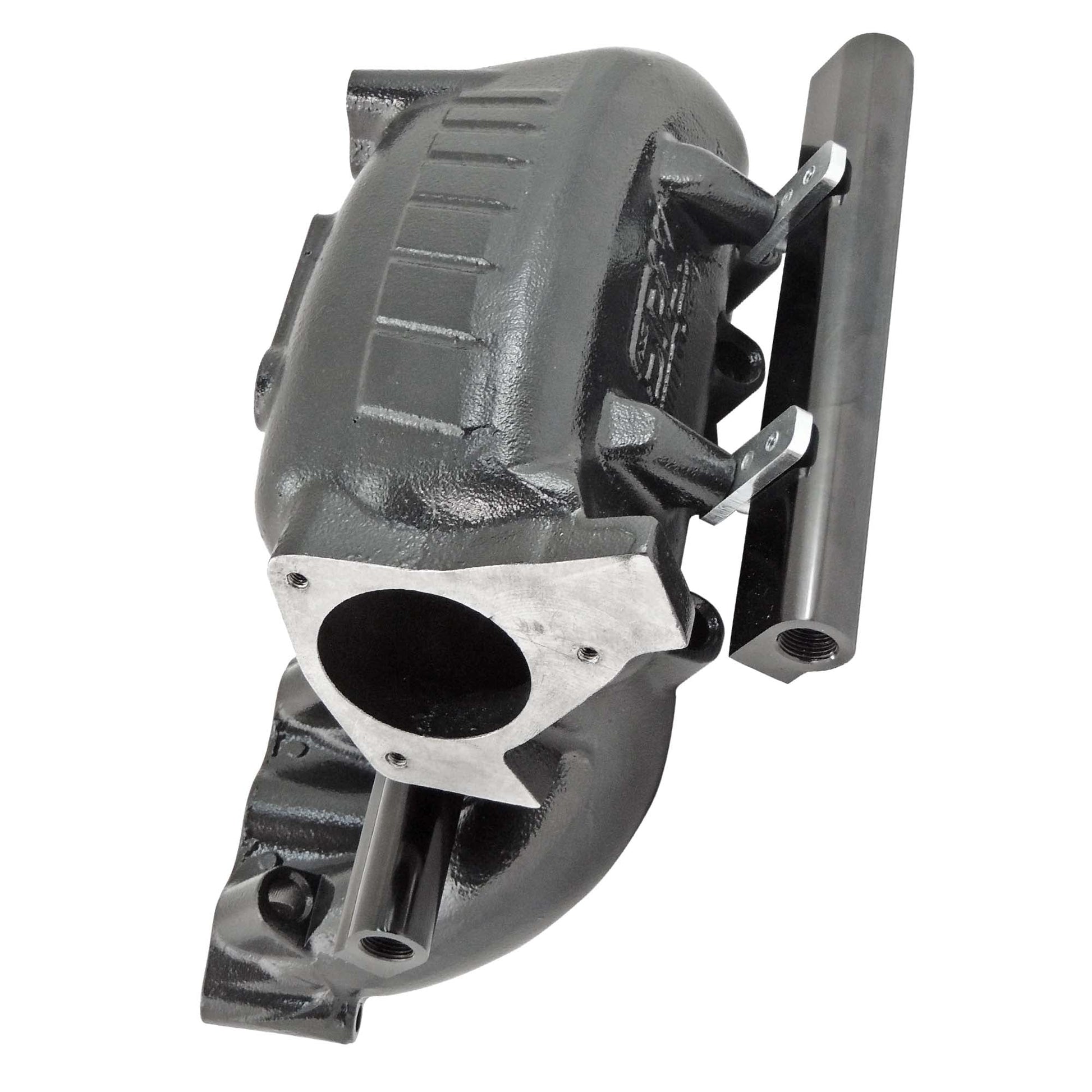

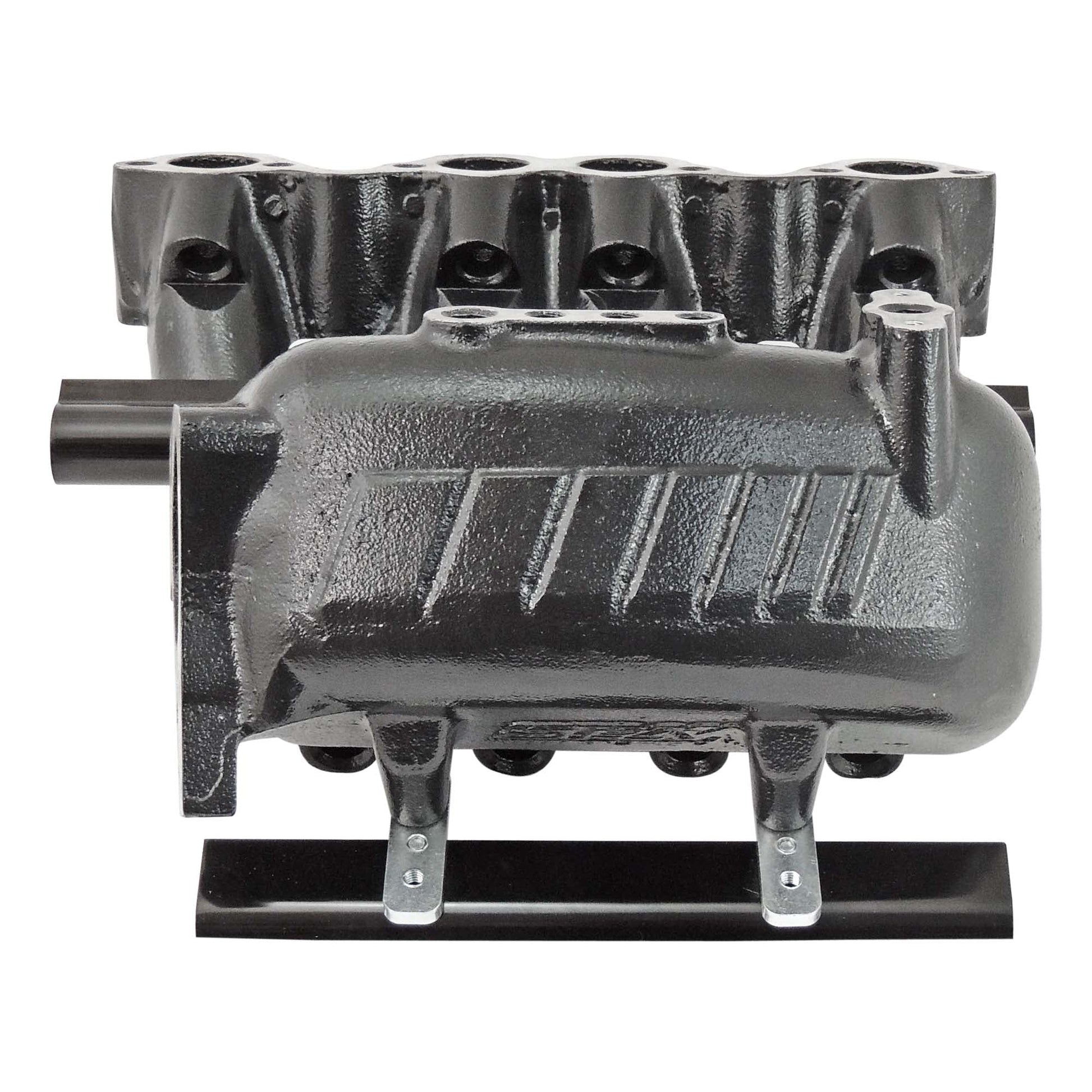

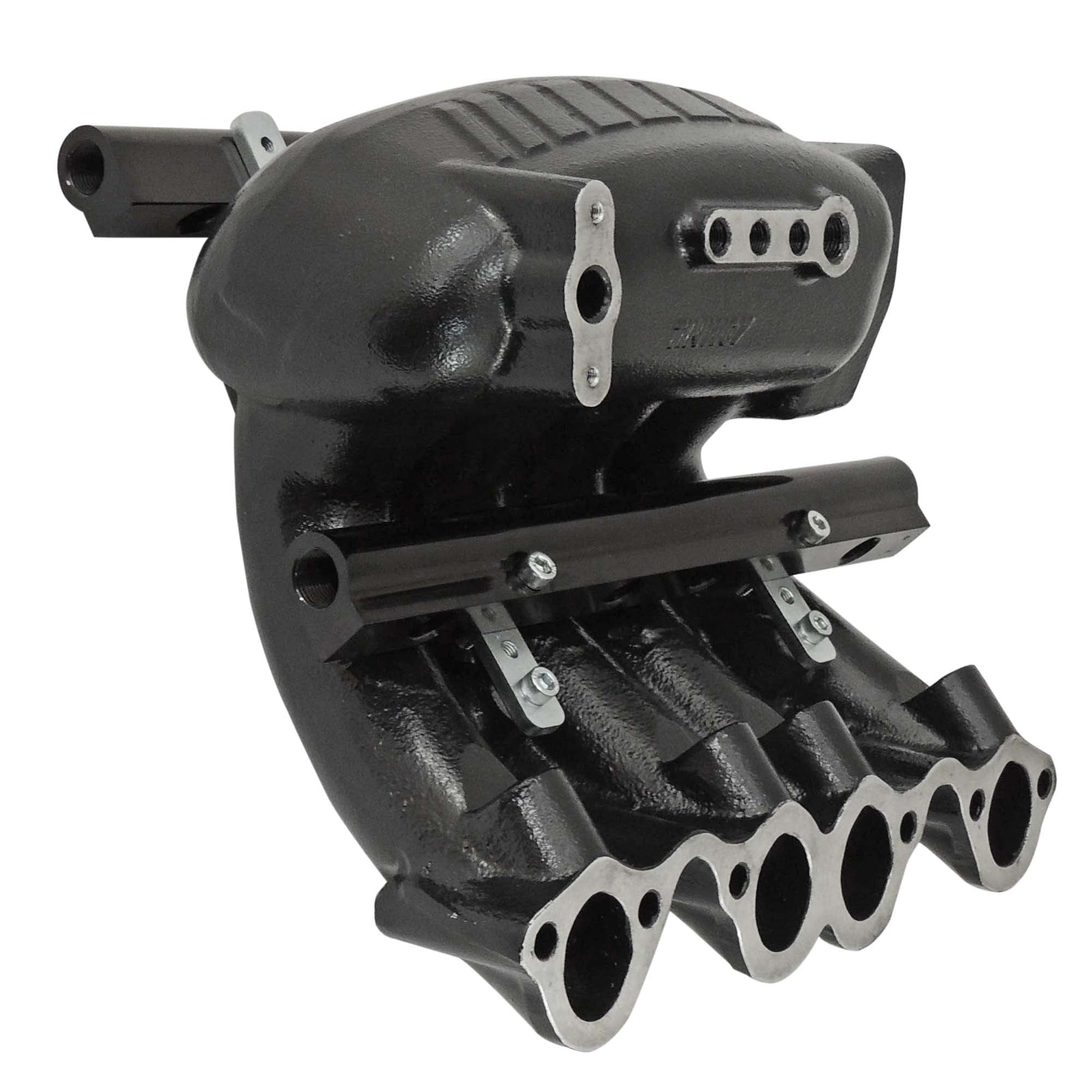

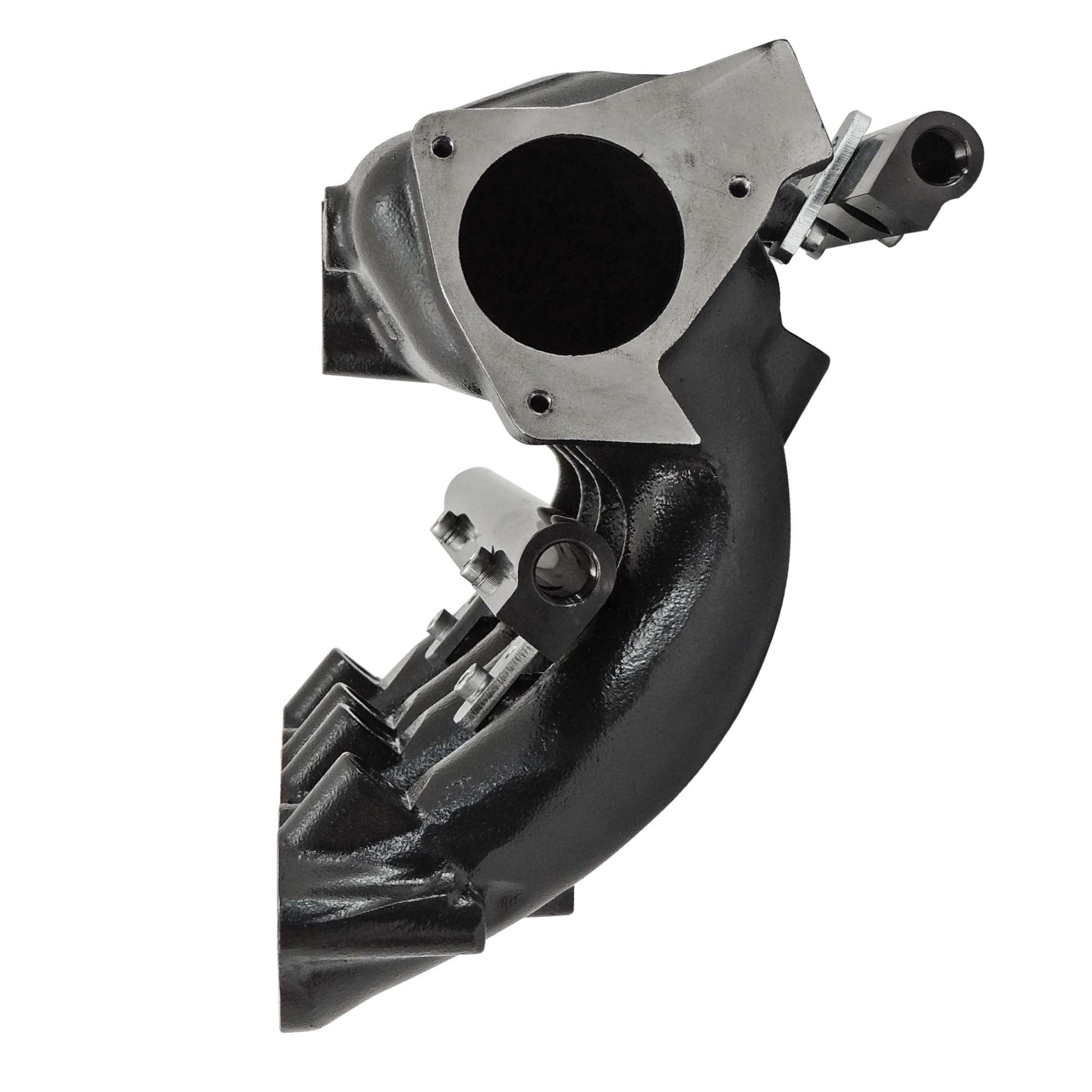

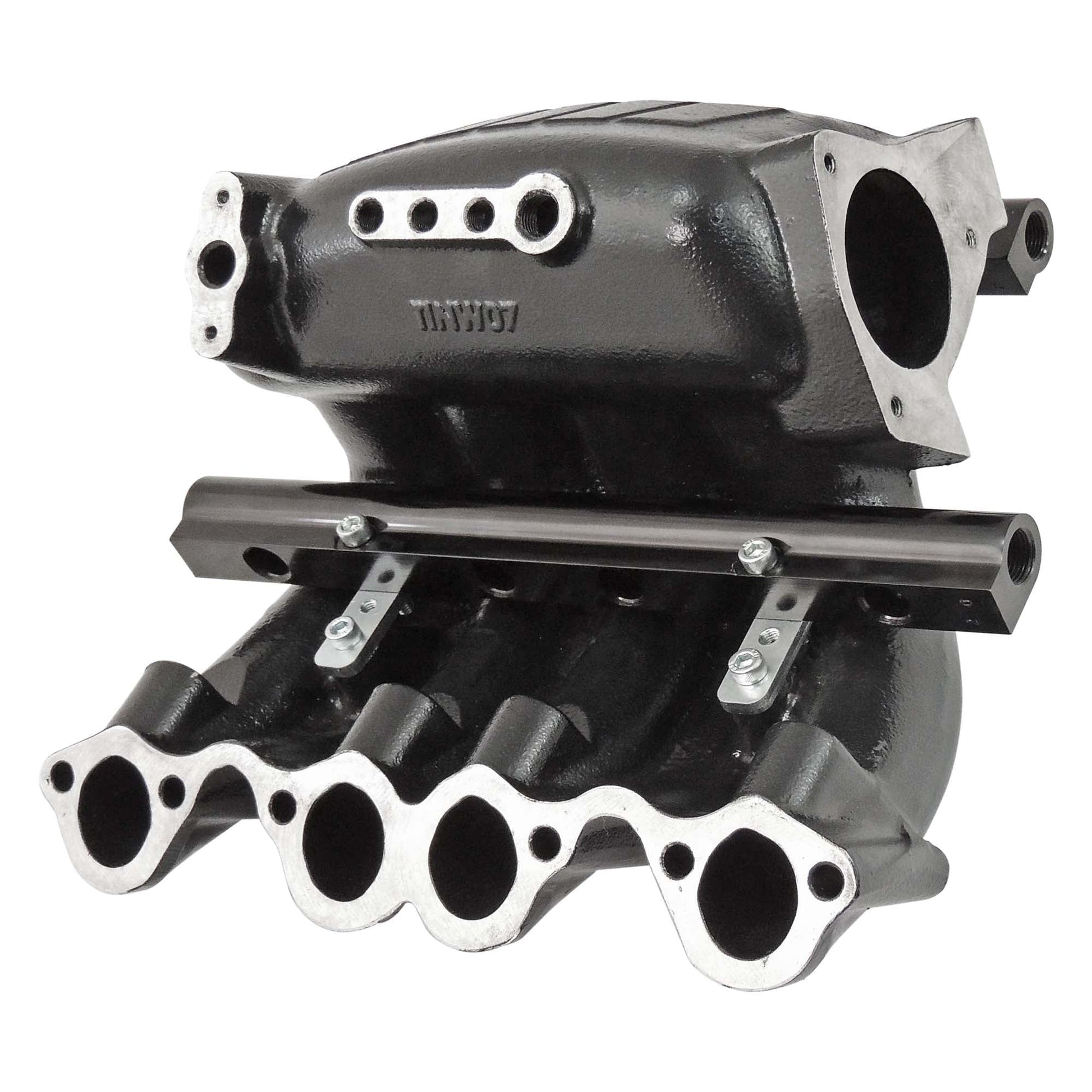

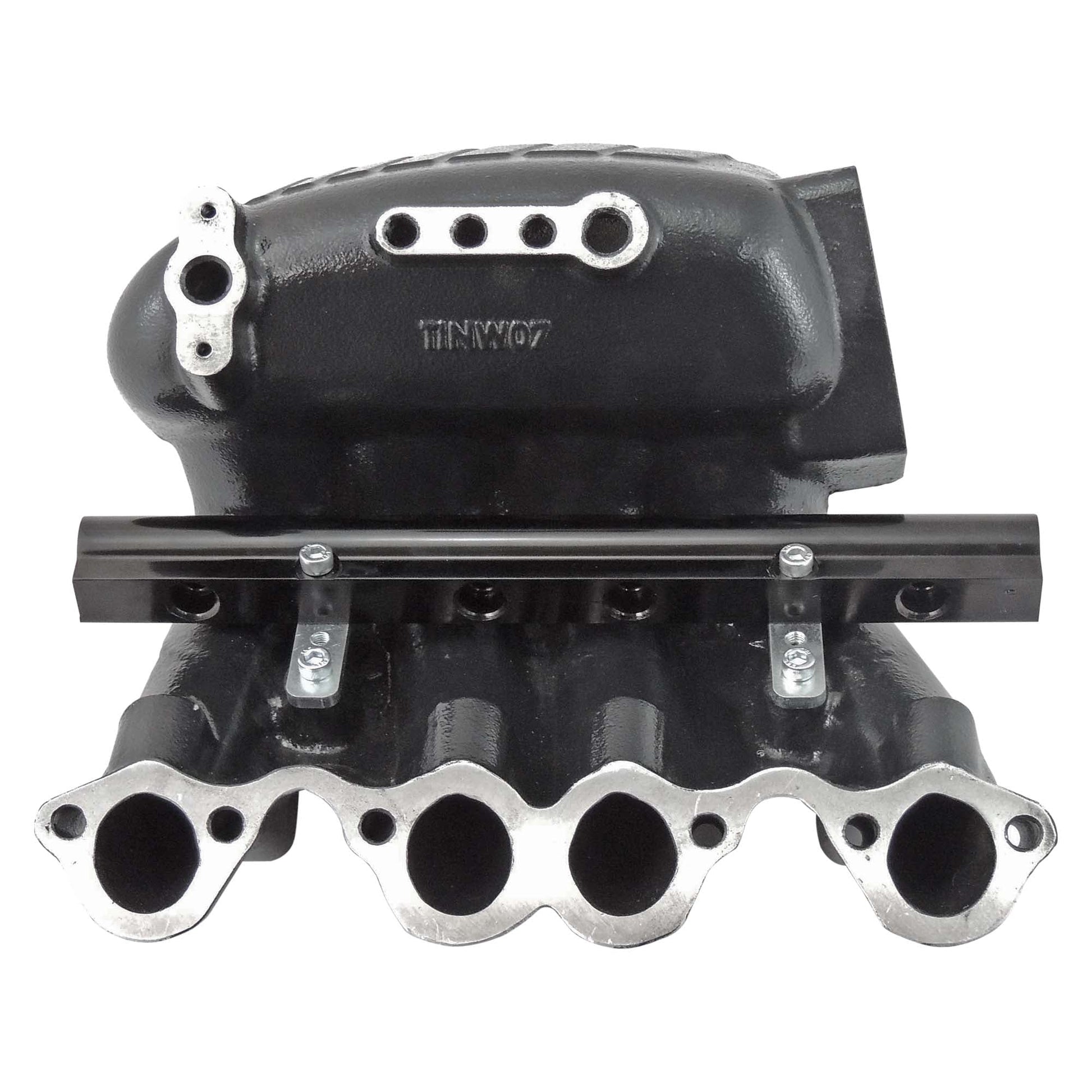

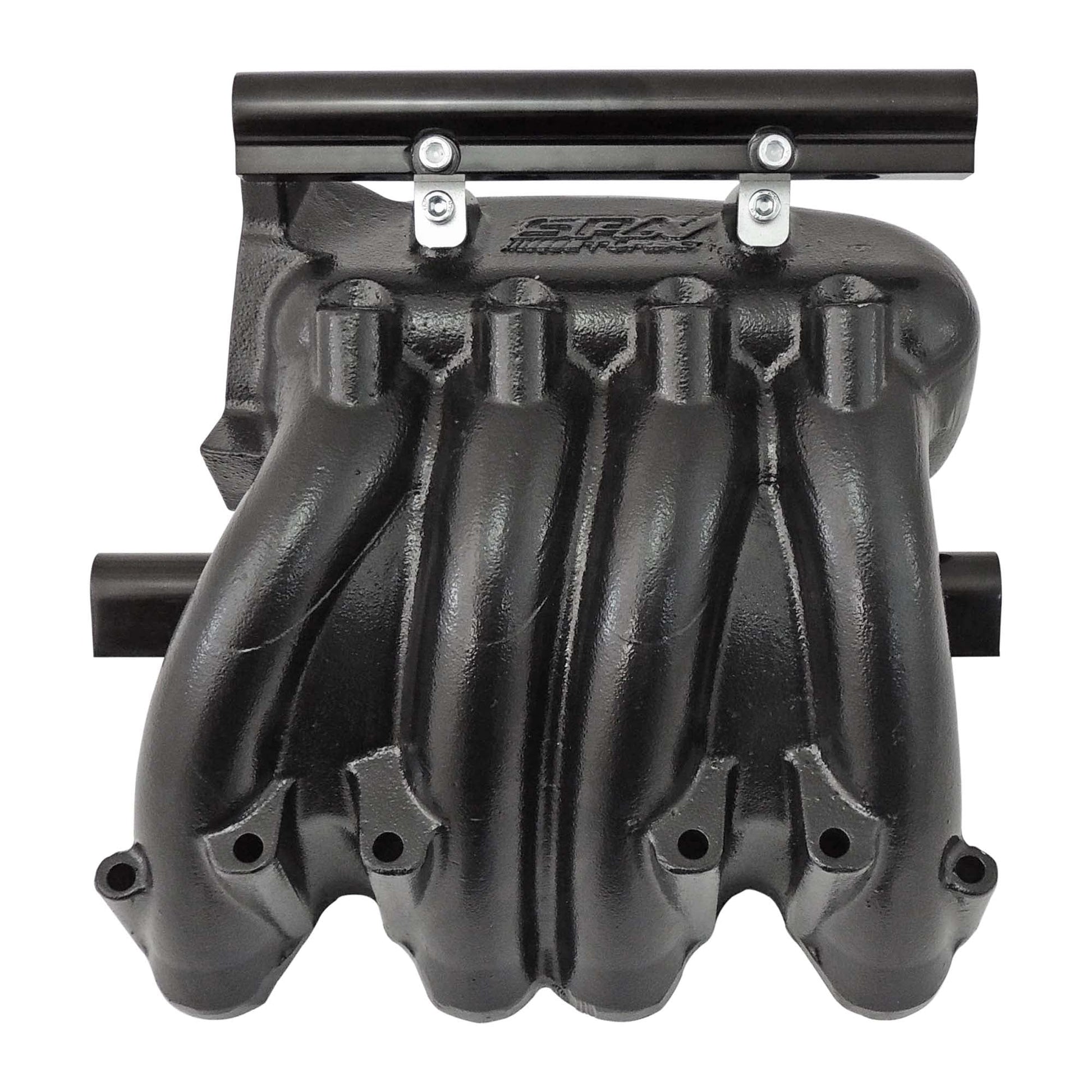

INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS BLACK

• Number of injectors: 8‚

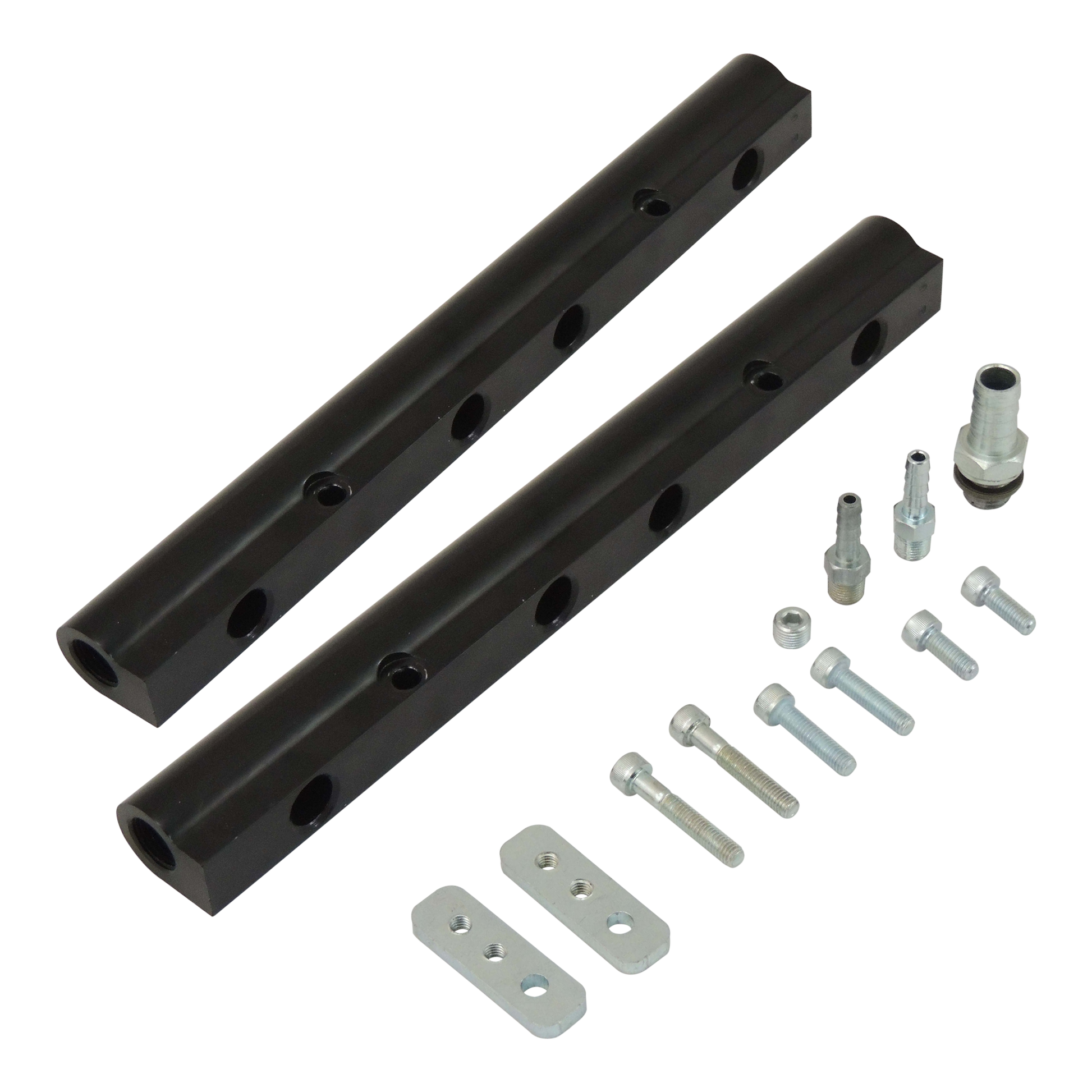

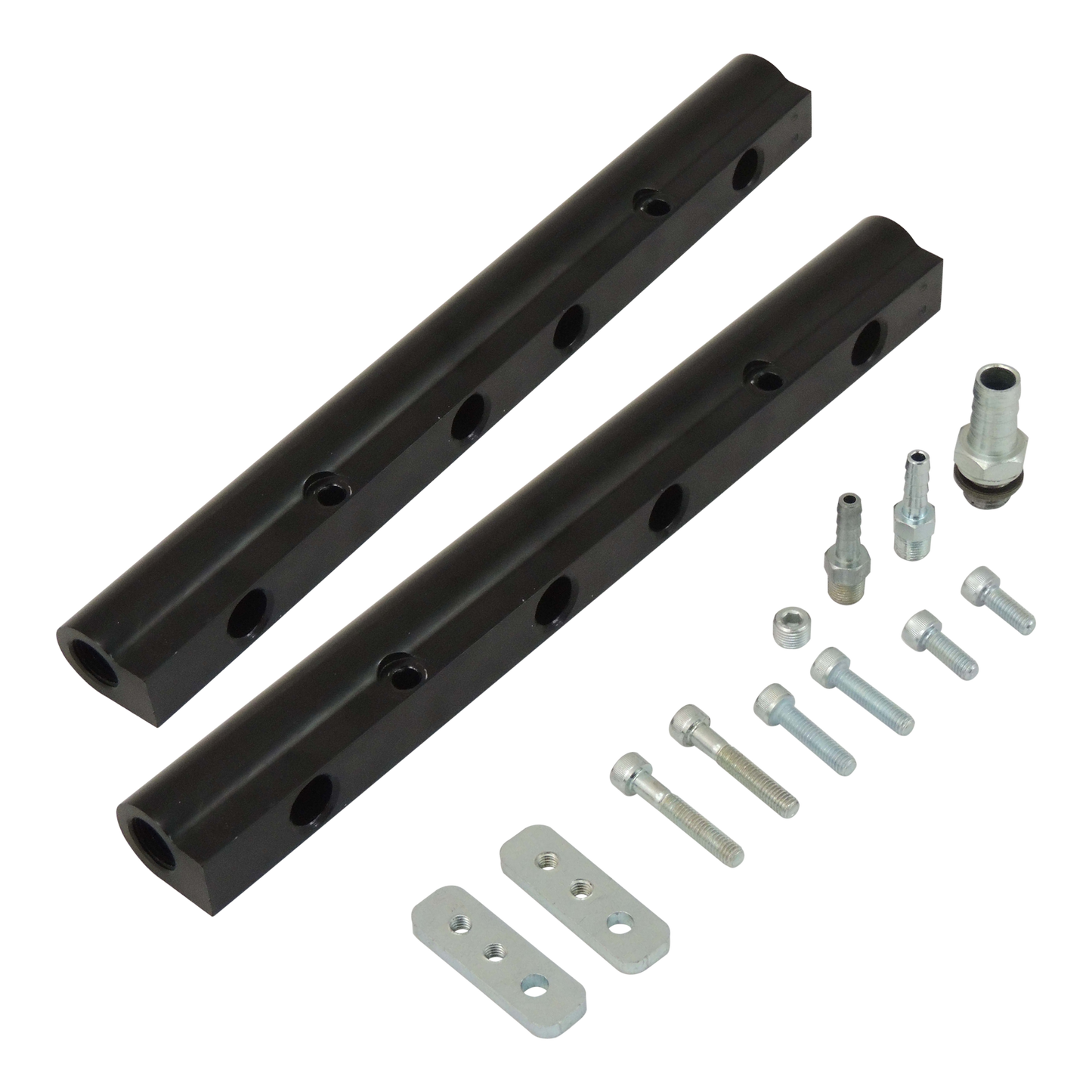

• Fuel rail: Anodized billet aluminum (black)
• Fuel rail connections: 3/8'' NPT
• Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

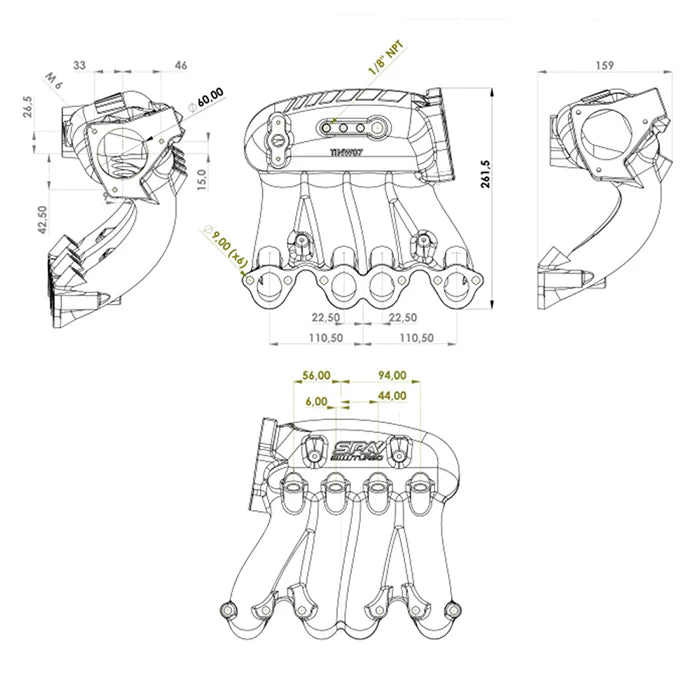

• Throttle body: VW MI (part number 026133064B)‚ Check technical drawing.
• TBI position:‚ rear
• Max working capacity: 10bar (145psi)
• Internal volume: 2.32L
• Material: Cast aluminum
• Application: VW 8V engine (reverse flow cylinder head)

ATTENTION:‚ changes may be required to install this intake manifold.
