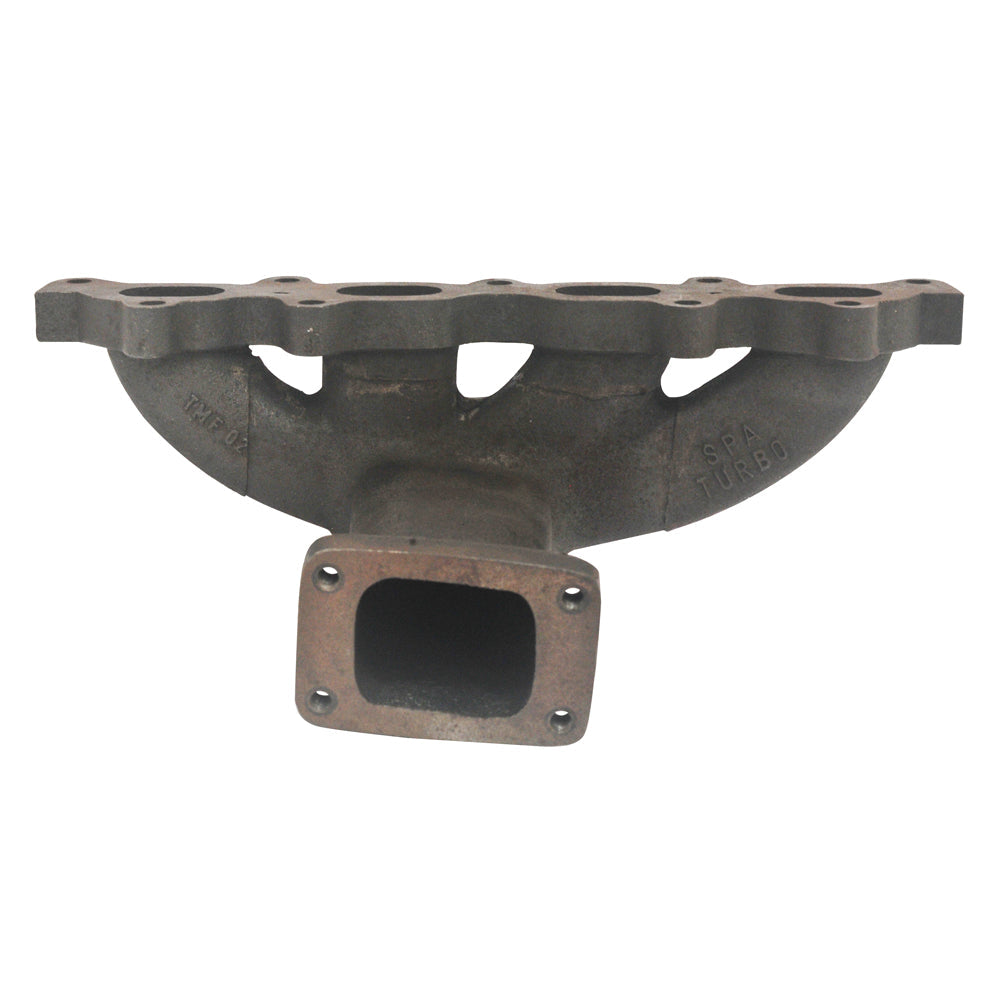

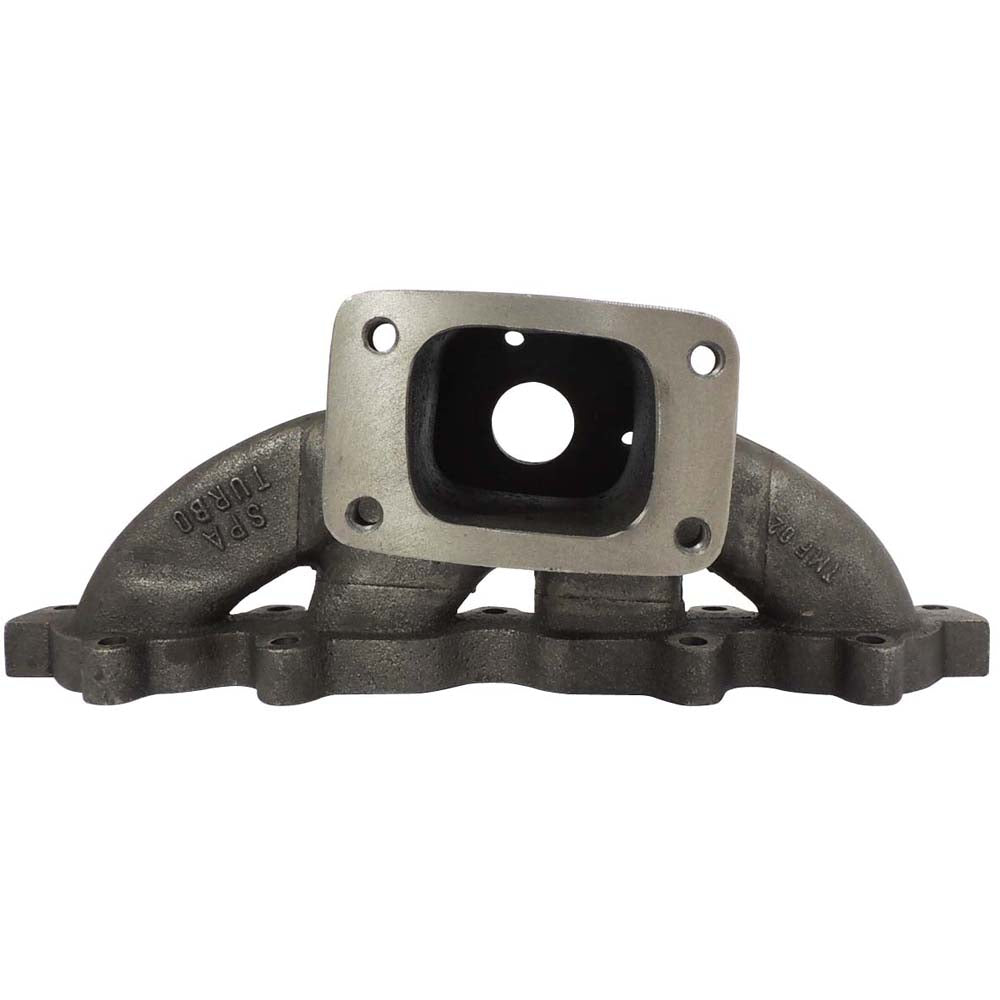

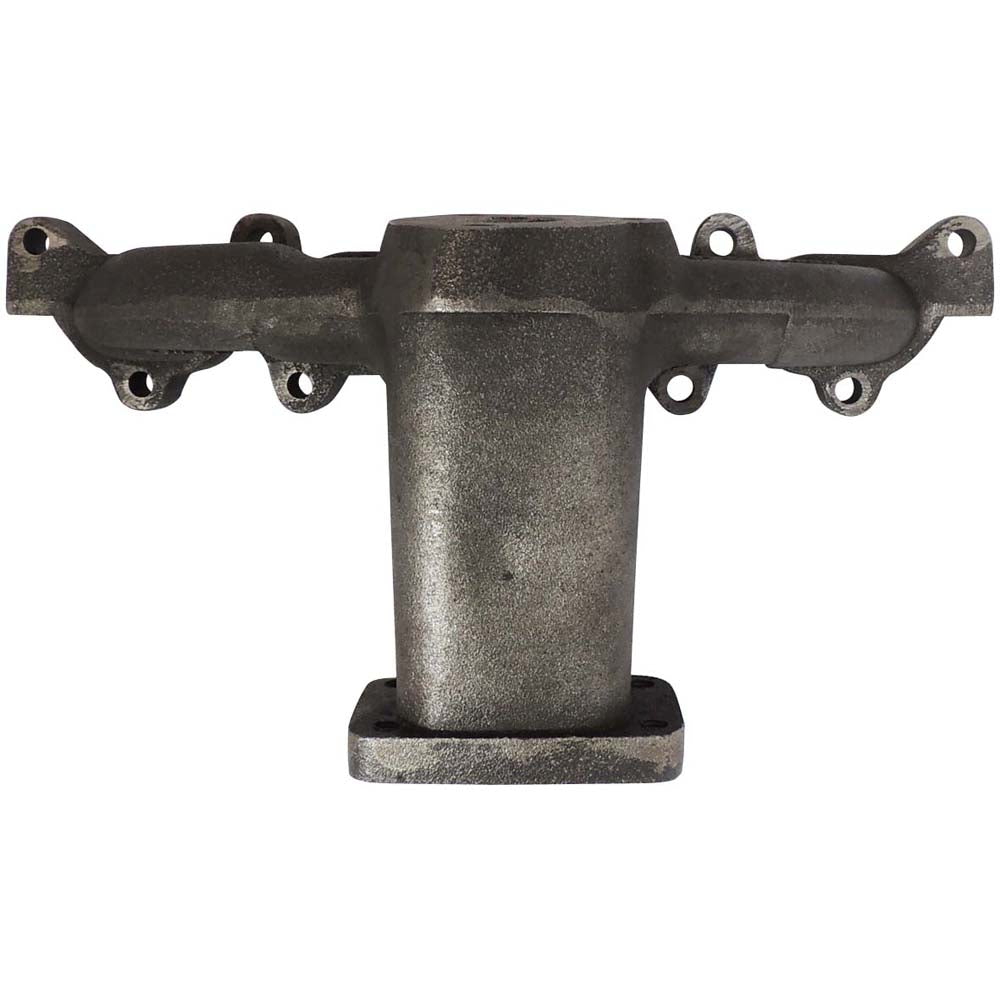

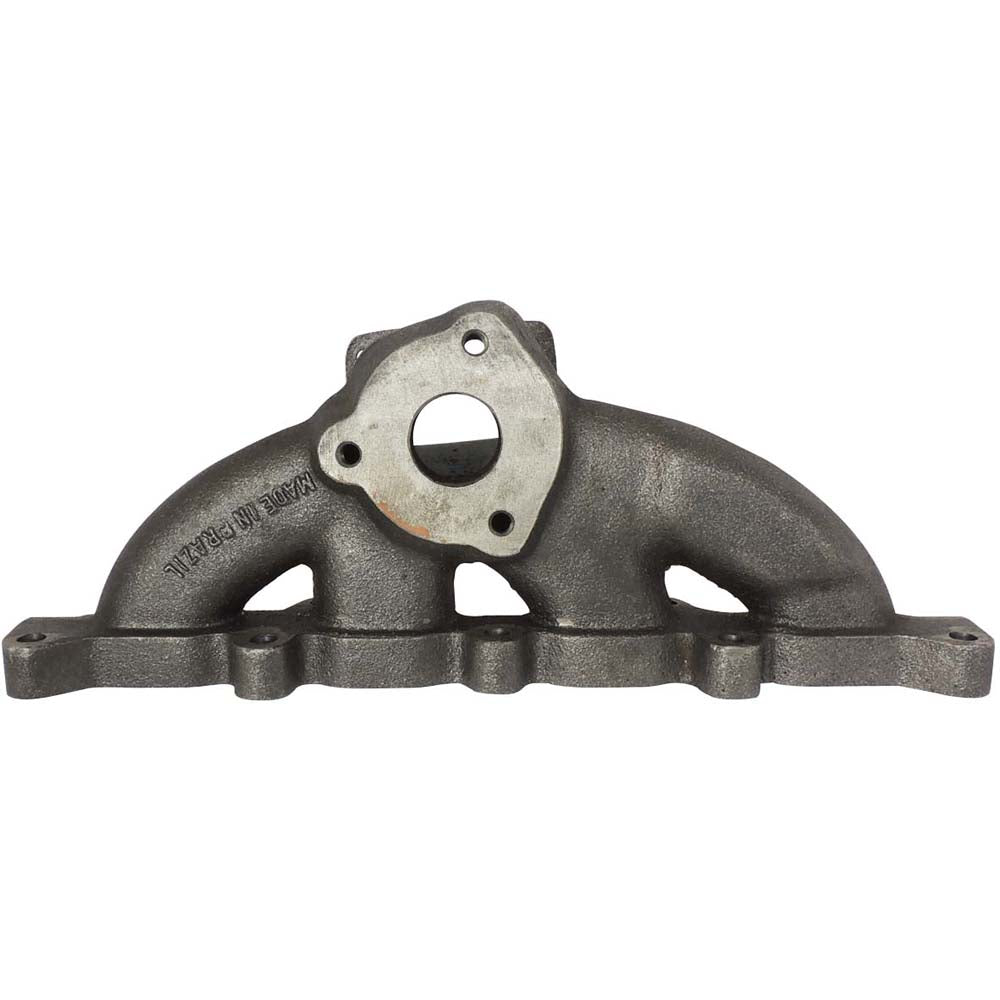

Fiat 1.4L 16V T25 turbo manifold

• The TMF02 manifold is a bottom mount GGG40 cast manifold, with a T25 turbocharger Flange; the manifold accepts SPA ¢â‚¬Å“L¢â‚¬ fitting wastegates.
• The application is FIAT 500 with 1.4L 16V ENGINES.
• US Engines requires a remote location of the OEM oil cooler.
• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
