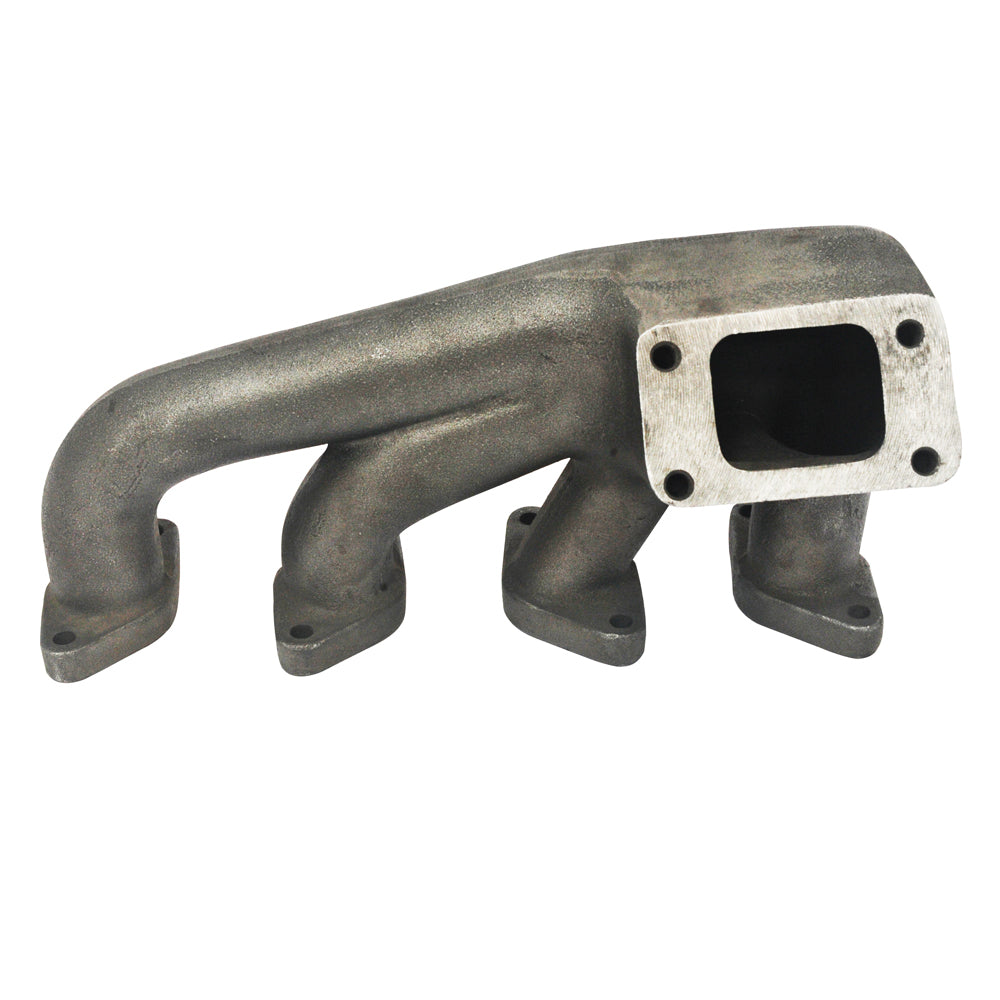

Chevy Euro C20NE longitudinal T3 turbo manifold

• Bottom-mount manifold
• The TMOP02 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; #CBBXQS63F turbine housings (not included) is reccomended to use an 2-bolt wastegate.
• The application is Opel Omega, S-10 with family II 8V longitudinal engines.
• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
