8th gen Honda Civic SI (K20 engine) TWIN SCROLL CAST TURBO MANIFOLD V-BAND WASTEGATE

SPA Performance brings another great news for K20 lovers! The new turbo manifold for 8th gen Honda Civic SI, twin scroll and with V-Band 44/45mm wastegate flange, ensuring maximum flow and boost control for your project.

Application: 8th gen Honda Civic SI (K20 engine)

Turbocharger position: Bottom mount

Turbine housing flange: T3

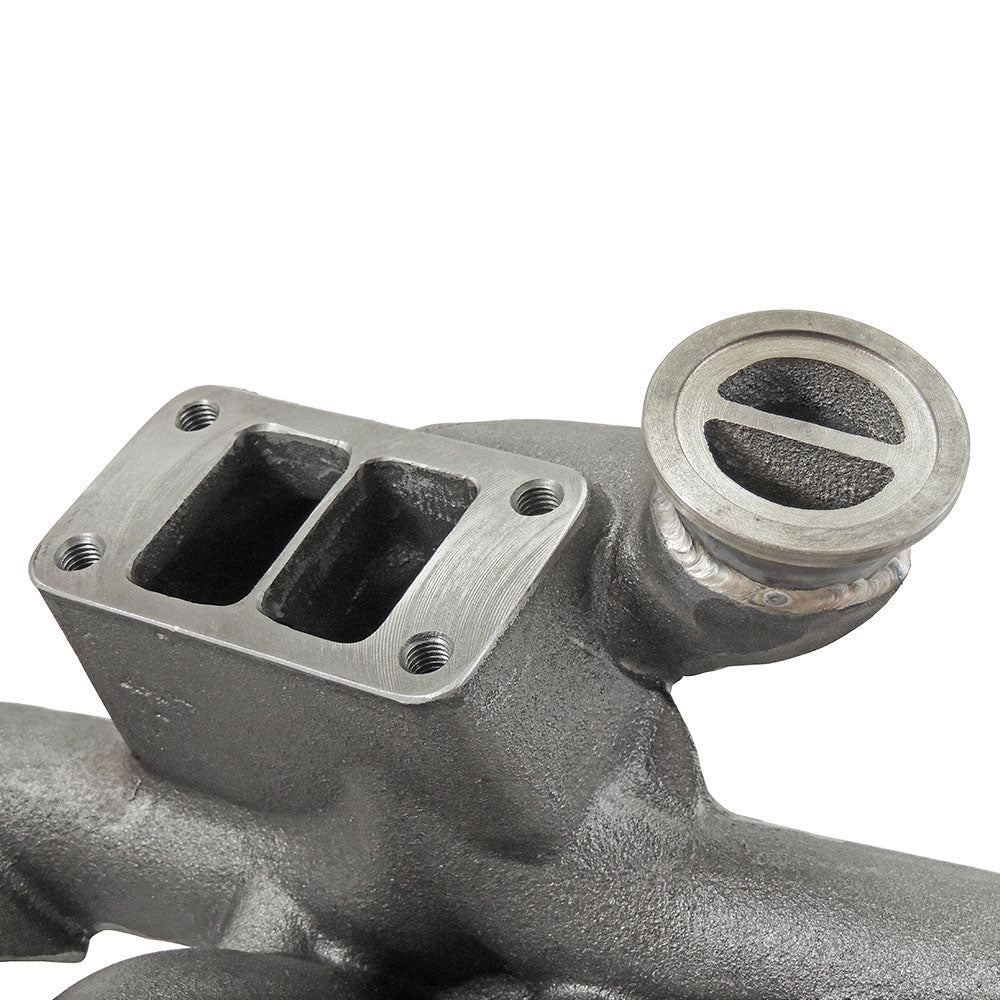

Wastegate flange: V-Band 44/45mm

Runners internal diameter: 43mm

Material: Cast iron

To install the turbo manifold, it is necessary to remove the Vtec solenoid valve heat shield.

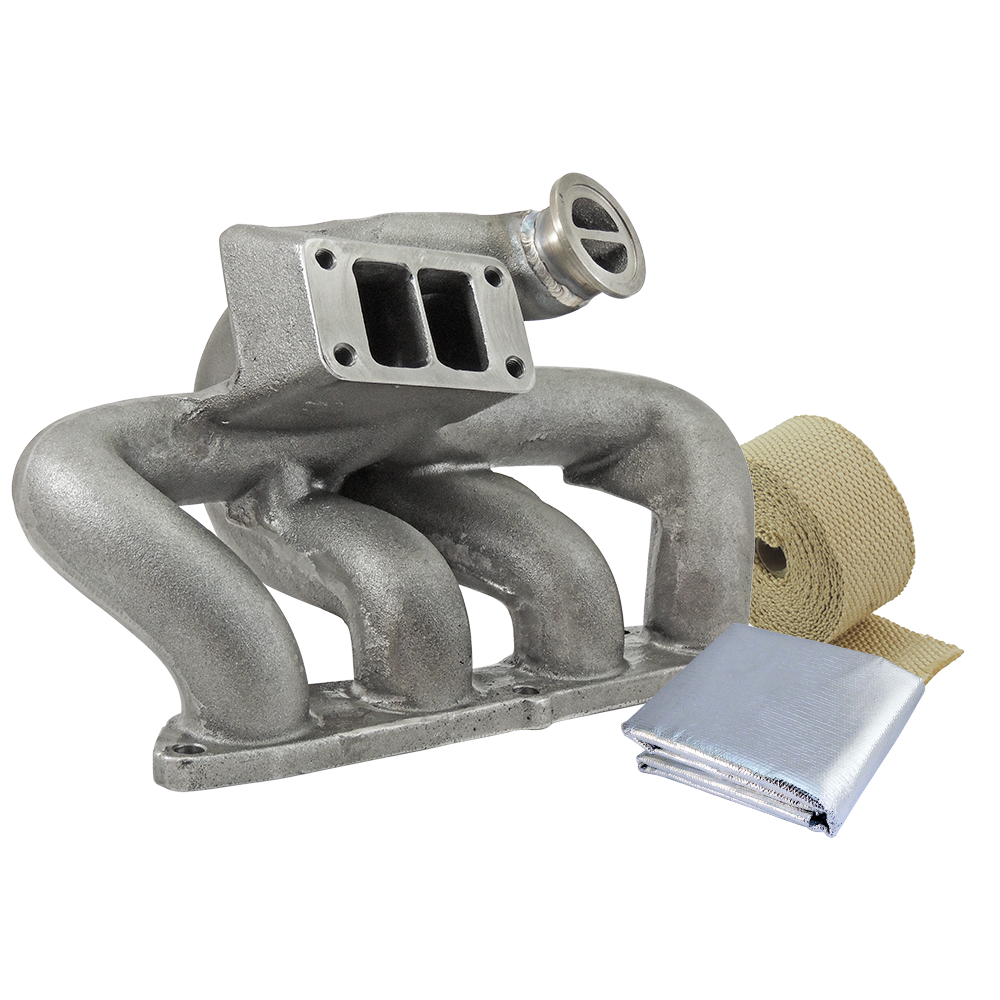

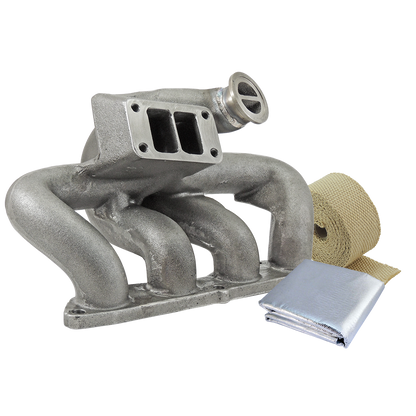

Attention: Due to proximity to the brake line and the Vtec solenoid, the ‚ turbo manifold comes with a 50x50cm plate of aluminum reflective fiberglass for application on the fire wall (using glue) and a 2¢â‚¬x5m ‚ black exhaust wrap to wrap the manifold + 5 stainless steel zip ties.

Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
