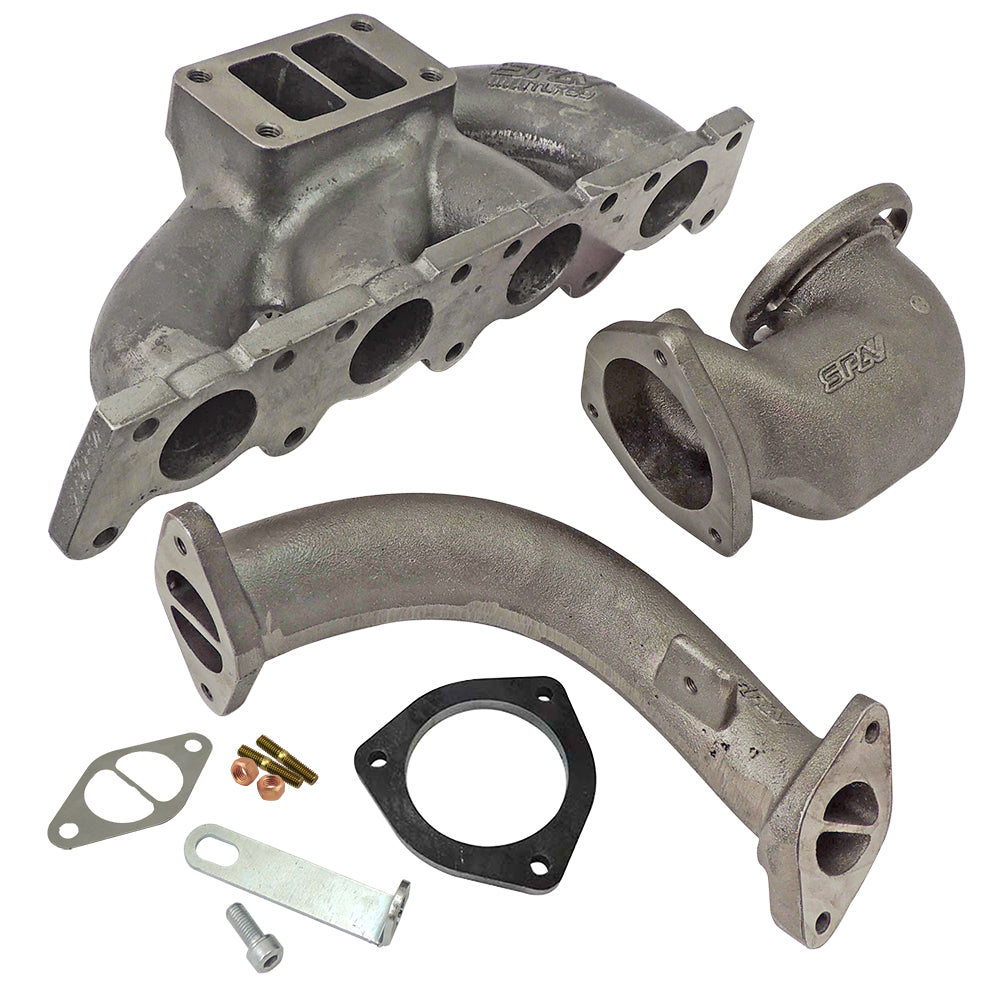

VW MKIV GTI T3 Twin Scroll Top Mount Turbo Manifold - EVOLUTION

VW MKIV GTI T3 Twin Scroll Top Mount Turbo Manifold - EVOLUTION

$606.00 CAD
$606.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, with 1.8T 20V specialists, a new project full of improvements emerged.

  • Better performance, with optimized flow thanks to redesigned runners.

  • ‚ Perfect position of the wastegate, allowing the application of large valves, facilitating boost control and possible maintenance.

  • Ideal turbocharger positioning for building a pressurization with smooth curves and accommodates turbines as big as GT35 and similar.

  • Includes cast initial exhaust outlet and 3¢â‚¬ flange for making the rest of the exhaust, facilitating application.

    ‚

  • Application: VW/Audi 1.8T 20V transverse

  • Turbocharger mount: Top mount‚

  • Turbine housing flange: T3‚

  • Wastegate flange: 2-bolt 38mm‚

  • Runners internal diameter: 42mm‚

  • Material: Cast iron

  • Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
