Nuke Performance - Bosch injector 2200cc NGI2, 53mm (EV14S), 8pcs flow matched

Nuke Performance - Bosch injector 2200cc NGI2, 53mm (EV14S), 8pcs flow matched

$1,475.00 CAD
$1,475.00 CAD
Sale Sold out
Shipping calculated at checkout.

Flow matched Bosch 2200cc NGI2 injectors, high impedance - 53mm (EV14S), selected to fit the Nuke Performance range of 8cyl fuel rails.

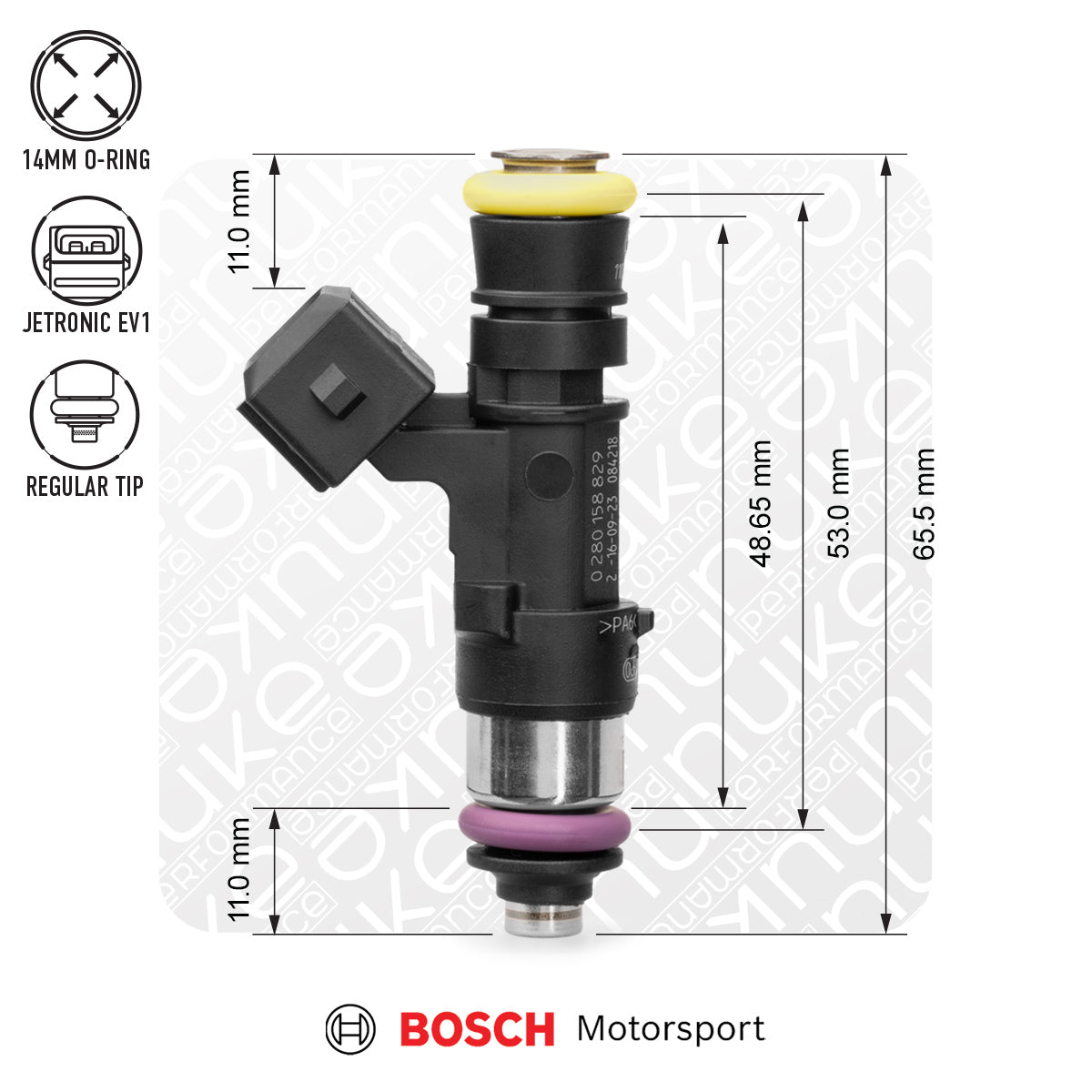

These injectors are Bosch EV14S Standard injectors (48.65mm between O-rings / 53mm center to center of the O-rings).

• High impedance 2200cc injector from Bosch Motorsport
• Regular tip, Bosch EV14 S injector length
• Kit of x8 flow matched 2200cc injectors
• Delivered without additional adapters

When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.

• Bosch Motorsport 2200cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.

Bosch part number 0280158829 / Bosch -829
OEM part number 0 280 158 829 / 2200cc NGI2
Type - w/o included adapters 53mm EV14S (Standard)
Type - with included adapters No adapters included
Connector Bosch JPT EV1 Minitimer Jetronic
O-ring top / bottom 14mm Viton / 14mm Viton
Resistance 8.5 ohm
Volume at 3 BAR 980cc/min = 670g/min = 89lb/hr @ 3bar
Fuel compatibility Petrol / Gasoline *
Nozzle / Spray pattern Regular tip / Single cone spray
For motorsports use YES
Part # / EAN 131-08-220 / 7340209508666

* Note: This injector is made for natural gas (CNG) fuel and is not compatible with E85 or other alcoholic fuel.

• Bosch 2200cc NGI2 Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.

• Learn more : Visit our FAQ / Injector calculator

Measured peak static flow in a test environment
2 BAR (29 PSI) 1800cc / min = 171.4 lb / h
3 BAR (43.5 PSI) 2200cc / min = 209.5 lb / h
4 BAR (58 PSI) 2550cc / min = 242.8 lb / h
5 BAR (78.5 PSI) 2865cc / min = 272.8 lb / h
6 BAR (88 PSI) 3155cc / min = 300.5 lb / h
7 BAR (101.5 PSI) 3350cc / min = 319 lb / h
Petrol (10% margin) Turbo charged Naturally aspirated
1 cyl 1x314 = 314hp 1x377 = 377hp
4 cyl 4x314 = 1256hp 4x377 = 1508hp
5 cyl 5x314 = 1570hp 5x377 = 1885hp
6 cyl 6x314 = 1884hp 6x377 = 2262hp
8 cyl 8x314 = 2512hp 8x377 = 3016hp
E85 (10% margin) Turbo charged Naturally aspirated
1 cyl 1x241 = 241hp 1x290 = 290hp
4 cyl 4x241 = 964hp 4x290 = 1160hp
5 cyl 5x241 = 1205hp 5x290 = 1450hp
6 cyl 6x241 = 1446hp 6x290 = 1740hp
8 cyl 8x241 = 1928hp 8x290 = 2320hp


Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).

• Bosch injector 2200cc NGI2, 53mm (EV14S), 8pcs flow matched includes:
8 x Bosch Motorsport injector (# Bosch -829)
1 x Flow match certificate

• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical.
Bosch injector 2200cc, 53mm (EV14S), 4pcs flow matched Part # : 131-04-220
Bosch injector 2200cc, 53mm (EV14S), 5pcs flow matched Part # : 131-05-220
Bosch injector 2200cc, 53mm (EV14S), 6pcs flow matched Part # : 131-06-220
Bosch injector 2200cc, 53mm (EV14S), 8pcs flow matched Part # : 131-08-220
