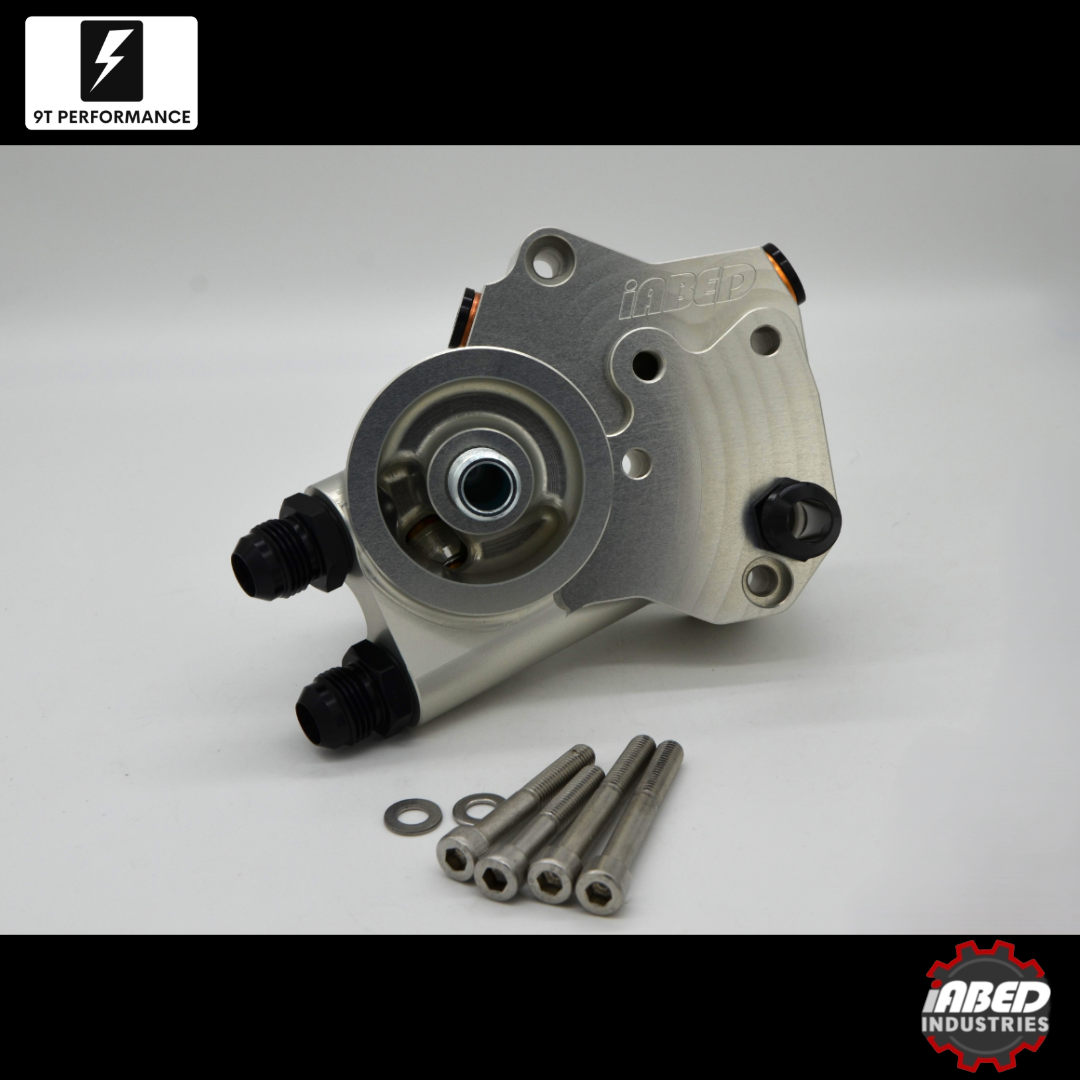

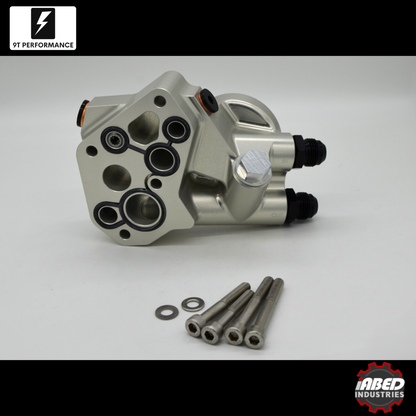

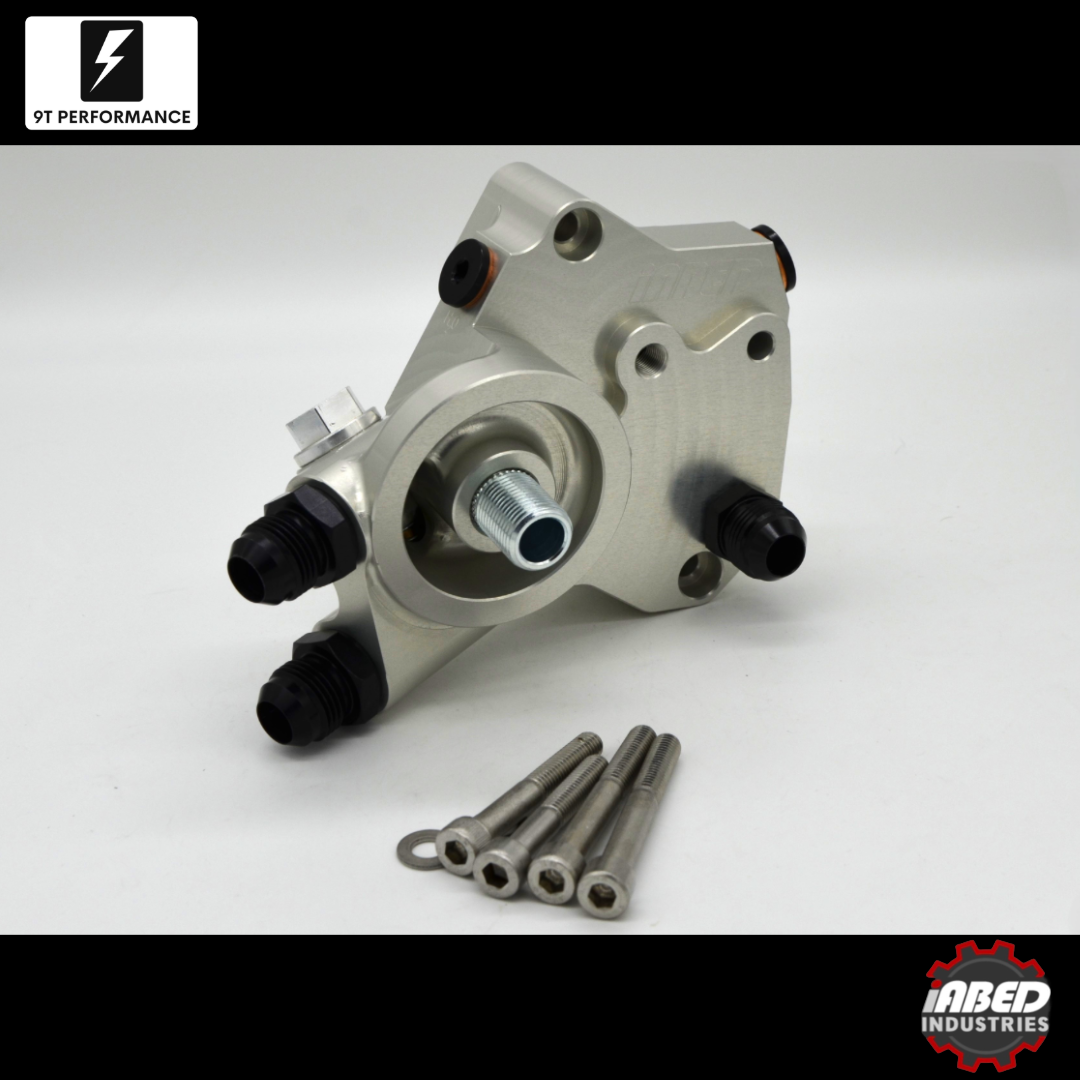

iABED Industries Longitudinal 07k Billet Oil Filter Housing w/ Built In Thermostat

iABED Industries Longitudinal 07k Billet Oil Filter Housing w/ Built In Thermostat

An upgrade over the iABED 462-635-0020, this 5-axis machined unit has a built-in thermostat for additional oil cooling and control. Fits all 07K engines (including aluminum block DAZA , etc). This is a great oil filter housing to use with the Iroko Industries B-Chassis 07K Swap Mounts or for a 07k swap projects of your choice.

Key features include :

• ¾-16” threaded nipple for any screw on oil filter (Most common being either 06A 1.8T or similar)
• MOCAL 90°C Thermostat incorporated into the housing allowing the installer to not need an additional thermostatic sandwich plate. (essentially an upgrade over 462-635-0024).
• M16 x 1.5 cross channel port that can be used for turbocharger oil feed (with an adapter) or additional sending units.
• Compact lightweight design with material removal in non-critical areas to save on weight.

Optional External Oil Cooler Kit includes:

• Qty - 1: Setrab 19 Row Oil Cooler
• Qty - 3: 90° -10 AN Fittings
• Qty - 1: 120° -10 AN Fitting
• Qty - 2: M22 to -10 AN ORB Fittings
• 10 ft: -10 AN Black Braided Nylon Hose
