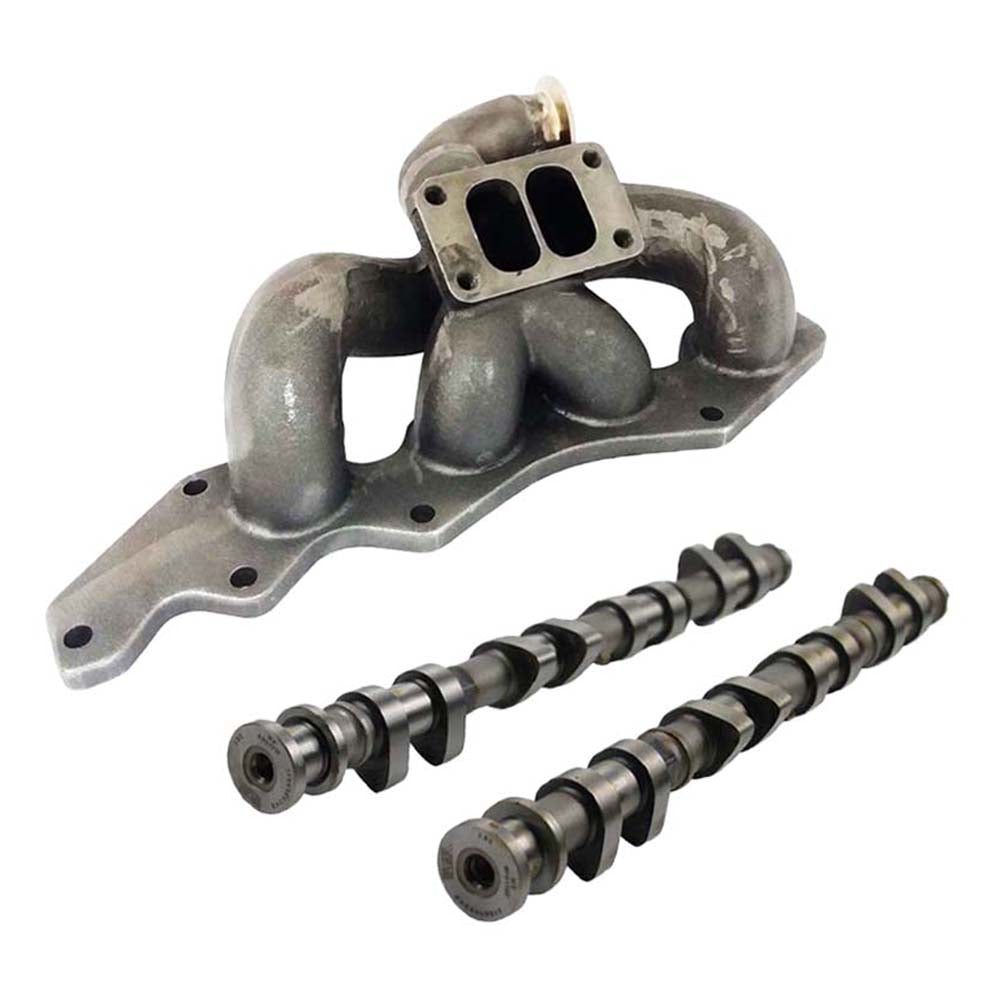

Ford Focus SE Duratec Twin scroll T3 turbo manifold 90 degree wastegate + 282°/ 262° Camshaft For Ford Duratec

Ford Focus SE Duratec Twin scroll T3 turbo manifold 90 degree wastegate + 282°/ 262° Camshaft For Ford Duratec

$793.00 CAD
$891.00 CAD $793.00 CAD
Sale Sold out

Ford Focus SE Duratec Twin scroll T3 turbo manifold 90 degree wastegate
  • Will fit Focus, Fusion and Mazda with 2.0L, 2.3L or 2.5L Duratec engines
  • T3 twin scroll turbocharger flange
  • 44/45mm wastegate V-band flange
  • MKII and MKIII Focus require Wastegate support (included)
  • Bottom mount configuration
  • Nodular cast iron
  • Large ducts for high performance

  • Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25

282‚°/ 262‚° Camshaft For Ford Duratec

  • For‚ DURATEC engines 2.0L 240 BPH / 2.3L 260 BHP race solid camshaft set
  • Ford Duratec HE I4
  • Please NOTE: these cams are not compatible with Ford/ Mazda variable cam timing feature.
  • these are the potential BHP for the cams, with the suitable performance engine modifications.‚
  • These cams require suitable upgraded valve springs. Cams are designed for use with standard pulley and friction washer.‚
  • Timing slot positioned for optimun cam timing and easyer installation,‚ please note that the 4th cylinder will be in valve balance when using the 6mm plate tool.
  • we recommend new camshaft sprocket fasteners when installing.
  • engine tune is necessary (not included)
  • this is NOT a OEM replacement part.
  • sold as a set.

  • Made of 1045 quenched steel
    Billet machined
    52-58 HRC

  • INTAKE 282‚º
  • EVCVSFD01I
  • 282deg, 11.5mm lift, max rpm 7800
  • EXHAUST 262‚º
  • EVCVSFD01E
  • 262deg, 9.85mm lift, max rpm 8000

All SPA Performance¢â‚¬s camshafts includes CMD anti scoring lube #3

Designed for extreme pressure applications, it¢â‚¬s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
