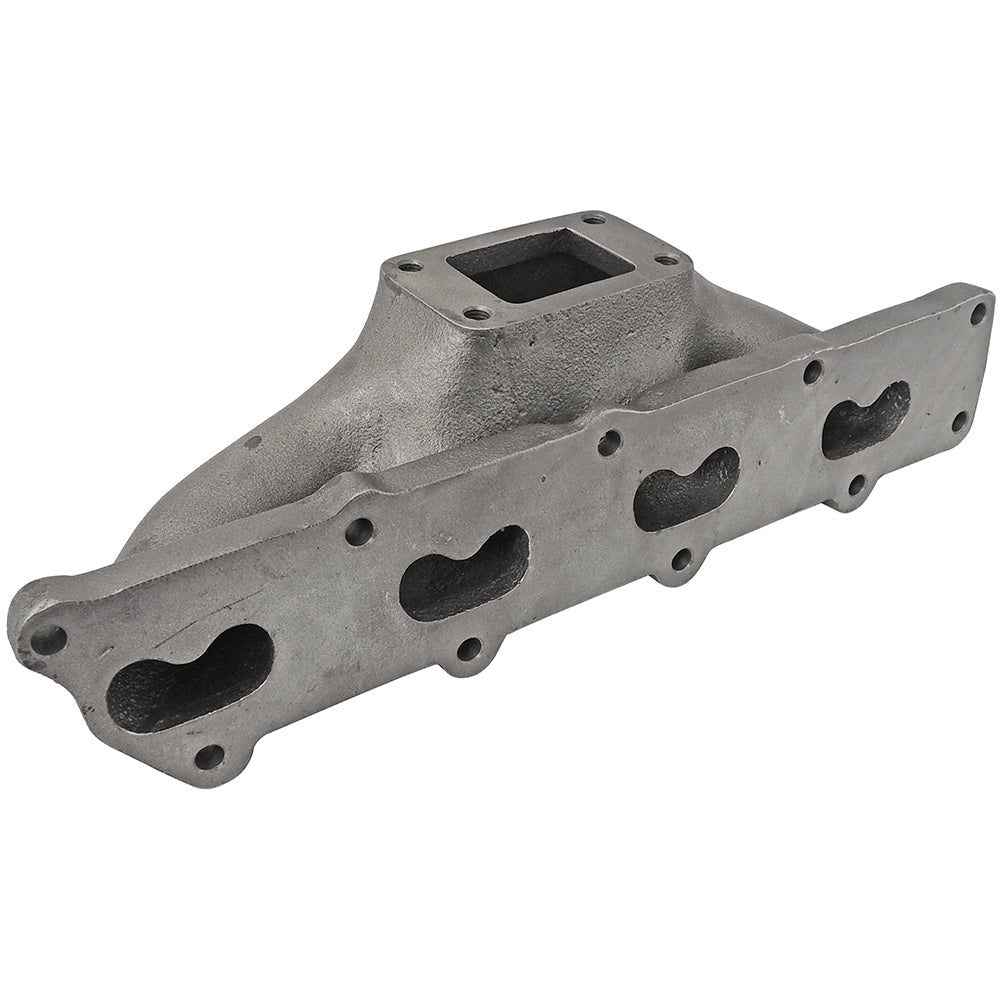

Chevy Euro X20XEV Z20LEX / C18XE T3 turbo manifold

Chevy Euro X20XEV Z20LEX / C18XE T3 turbo manifold

$255.00 CAD
$255.00 CAD
Sale Sold out
Shipping calculated at checkout.
  • SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
  • The TMOP06 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts SPA fitting wastegates.
  • GGG40 is a ductile, nodular iron grade of German (DIN) standard, which is equal to ASTM A536 60-40-18.
  • Manifold will fit‚ Pontiac Grand Am, and Chevy cavalier, Suzuki Foranze / Reno / Optra.
  • Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
