3 Port Boost Control Solenoid Kit

3 Port Electronic Boost Control Solenoid Kit

Everything you need to add ECU-controlled boost to your turbo build, in one kit. This 9T Performance 3-port boost control solenoid kit pairs a genuine MAC Valves 35 series solenoid with the fittings, muffler and Deutsch DT connector kit to plumb and wire it. It's a great alternative to pricier name-brand boost solenoid kits.

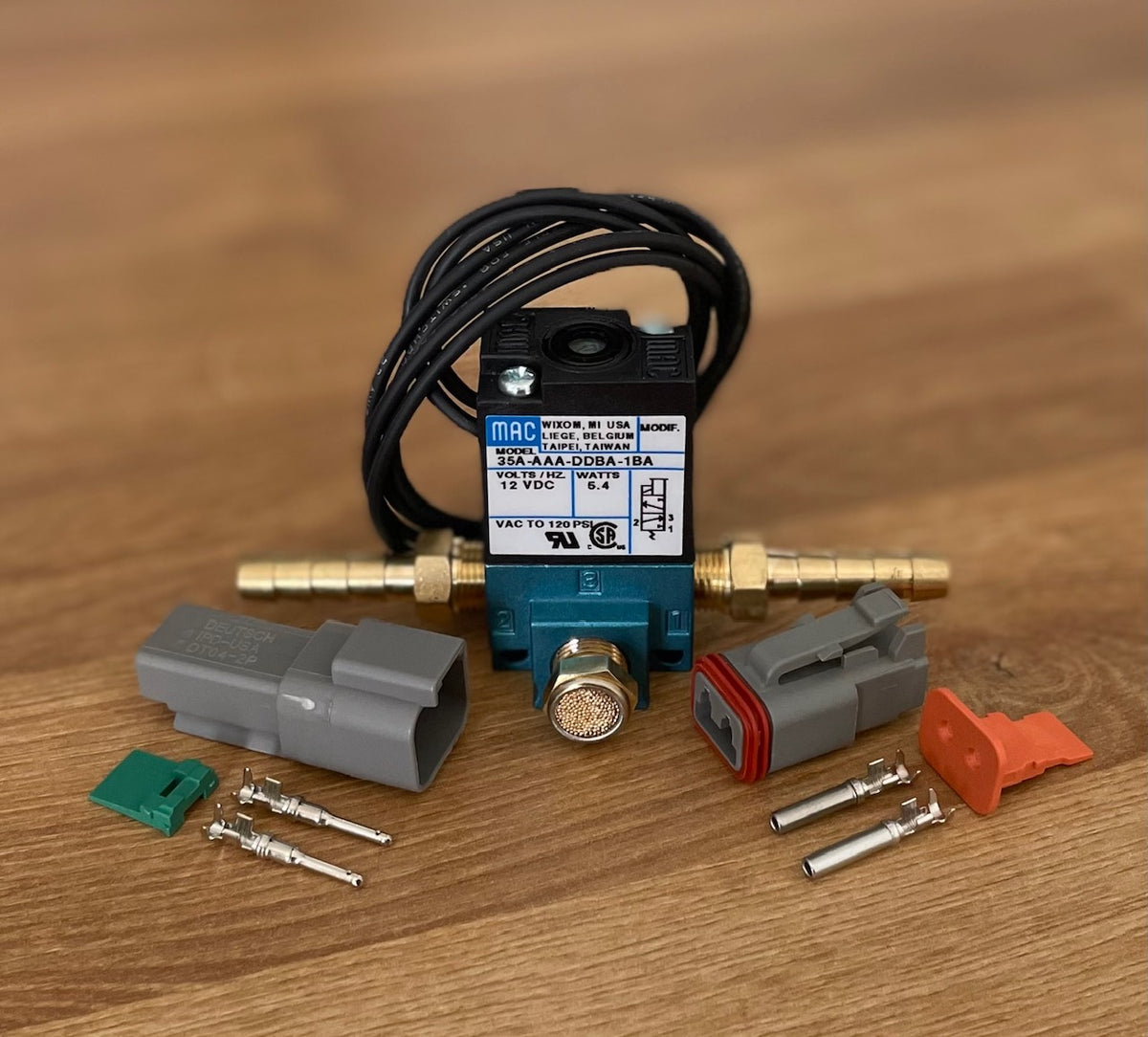

What's Included:

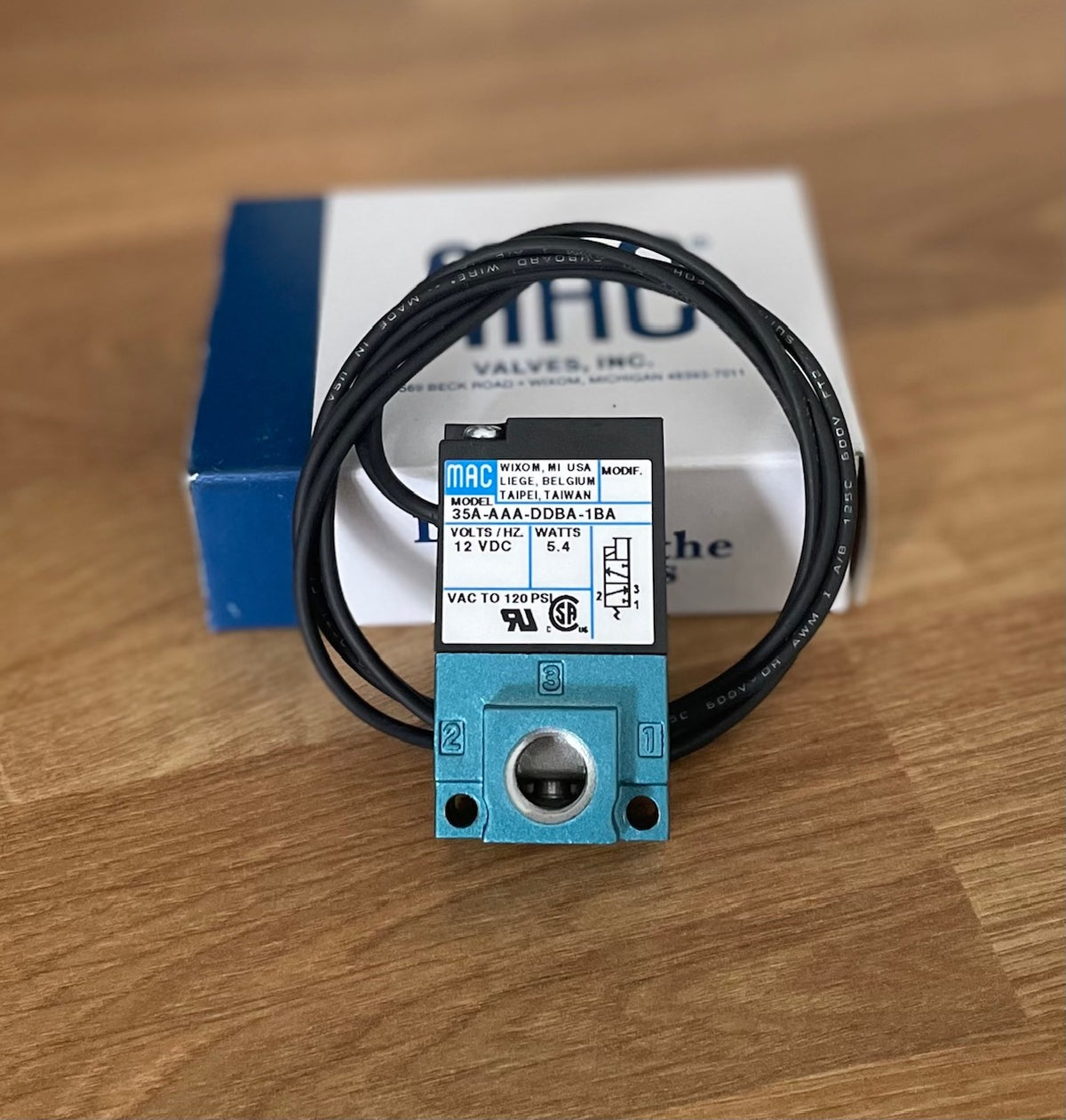

• Qty - 1: Authentic MAC Valves, Inc. 35 series 3-way valve, 12 VDC, 5.4W, & 18" leads

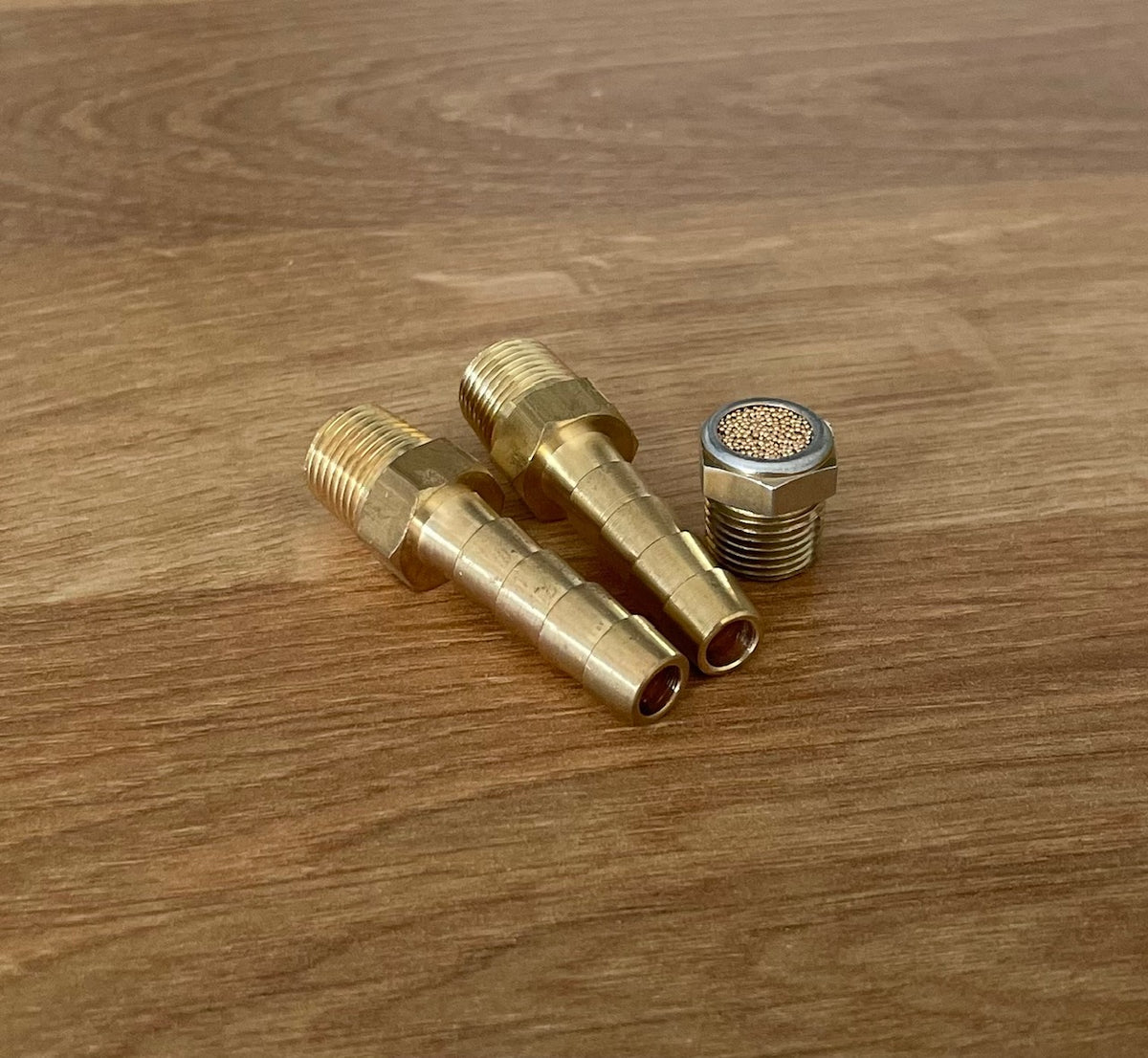

• Qty - 2: 1/8" NPT to 1/4" hose fittings
• Qty - 1: 1/8" NPT muffler for the vent port

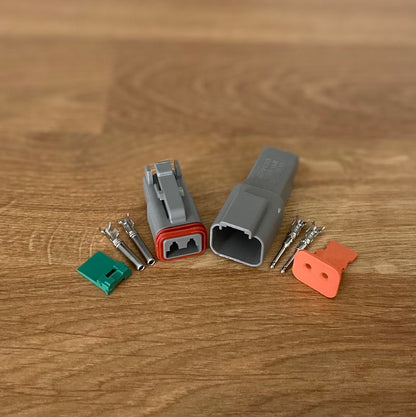

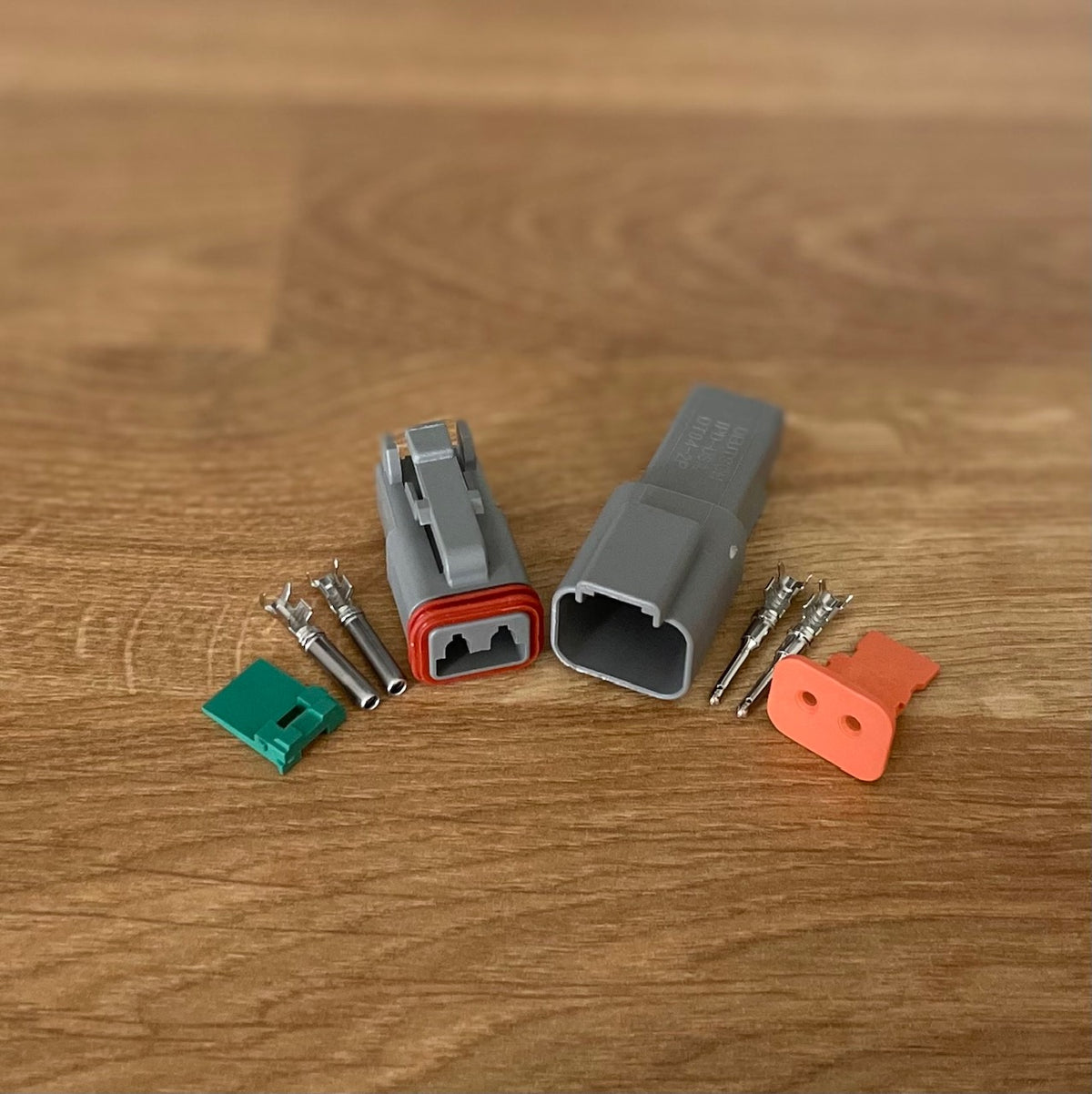

• Qty - 1: Deutsch DT series 2-wire connector kit for wiring

Already have fittings and connectors?  - Get the MAC 35 series 3-port solenoid by itself. If you'd rather have it all in one order, this kit is the easier route.

Frequently Asked Questions:

Why choose this kit:

• Complete for all three ports: two hose fittings plus a muffler, so nothing to hunt down before you start
• Reliable, motorsport-style wiring: Deutsch DT connector kit for a secure, weather-resistant connection
• Authentic MAC valve: new, genuine MAC Valves, Inc. 35 series
• Works with most PWM-capable ECUs: ECUMaster, Haltech, MaxxECU, Link, MoTec, AEM, Holley, Cobb, Megasquirt and more
• Supported by a boost-control specialist: we can help you match it to your ECU and setup

Specifications

• Valve: MAC Valves, Inc. 35 series, 3-port / 3-way
• Voltage / power: 12 VDC, 5.4 W
• Valve ports: 1/8" NPT
• Hose fittings: 1/8" NPT to 1/4" (qty 2)
• Muffler: 1/8" NPT (qty 1)
• Wiring: 18" valve leads with Deutsch DT series 2-wire kit
• Condition: New

ECU Compatibility:

This kit works with most aftermarket ECUs that support PWM boost control, including ECUMaster, Holley, Haltech, MaxxECU, Link Engine Management, MoTec, AEM, Hondata, Grimmspeed, Turbosmart, Autronic, Cobb Tuning, and Megasquirt. Always check your ECU's manual for the boost control output, recommended PWM frequency and wiring.

What does a boost control solenoid do?
It lets your ECU regulate the pressure sent to your wastegate actuator, which sets how much boost your turbo makes. The ECU switches the valve on and off rapidly (PWM) to raise or lower boost.

3-port or 4-port kit?
The difference between 3‑port and 4‑port solenoids is how much control authority they give the ECU and how they manipulate pressure on the wastegate’s top and bottom ports. A 4‑port boost solenoid provides a much wider and more aggressive boost control range than a 3‑port, allowing boost levels up to 4–6× the wastegate spring rating, while a 3‑port offers simpler, reliable control suitable for most internal‑gate and many external‑gate setups.

Looking to control higher boost levels with a smaller spring? - See our 4-Port Boost Control Solenoids.

Will it work with my ECU?
If your ECU has a PWM (or low-side switched) output for boost control, most likely yes. Check the manual for wiring and frequency settings, or email us your ECU model and we'll help.

Does the kit include hose?
No, the kit includes hose fittings, a muffler and the wiring connector kit. You'll need boost-rated hose sized for the 1/4" fittings.

Are these genuine MAC valves?
Yes. The valve is a new, authentic MAC Valves, Inc. 35 series.

Do I need a tune after installing it?
Yes. Changing boost control hardware changes how boost behaves, so have your ECU calibrated by a qualified tuner and double-check your plumbing before driving. Incorrect plumbing can cause overboost and engine damage.

Questions about fitment or plumbing? Email: sales@9tperformance.com.
